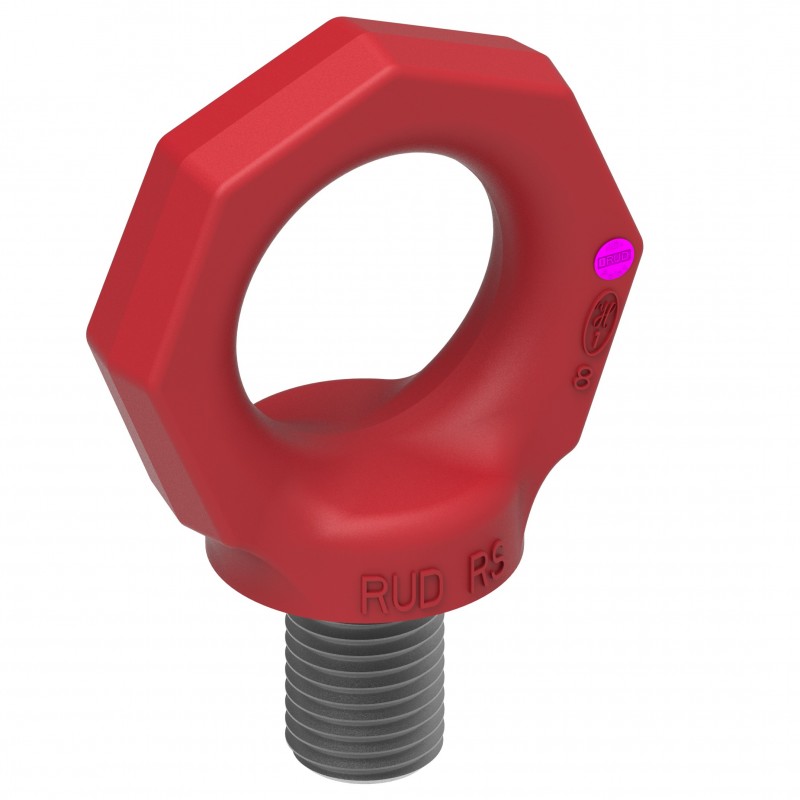

RS Eye bolt, UNC/UN thread - RUD View larger

RS Eye bolt, UNC/UN thread - RUD

With the following characteristics, distinctive in comparison to the conventional DIN - eye bolts; An octagonal shape symbolising quality class 8 Colored red, the identification color of quality class 8.

More details

Price:

on demand

More info

With the following characteristics, distinctive in comparison to the conventional DIN - eye bolts.

  • An octagonal shape symbolising quality class 8
  • Colored red, the identification color of quality class 8
  • Identification: Clear WLL indication for the most unfavorable load direction F2 (not permissible for DIN 580).
  • For applications of the RS eye bolt, there is a reliable - operations certification by the respective technical Committee.
  • It does not automatically adjust to the direction of pull. Not according to the RAG-Standard (Germany).

Product combinations

Model Capacity WLL in kg Thread
RS M6 100 M6
RS M8 200 M8
RS M12 250 M12
RS M12 400 M12
RS M16 1 000 M16
RS M20 1 500 M20
RS M24 2 000 M24
PS M30 3 000 M30
RS M36 4 000 M36
RS M42 6 000 M42
RS M48 8 000 M48
