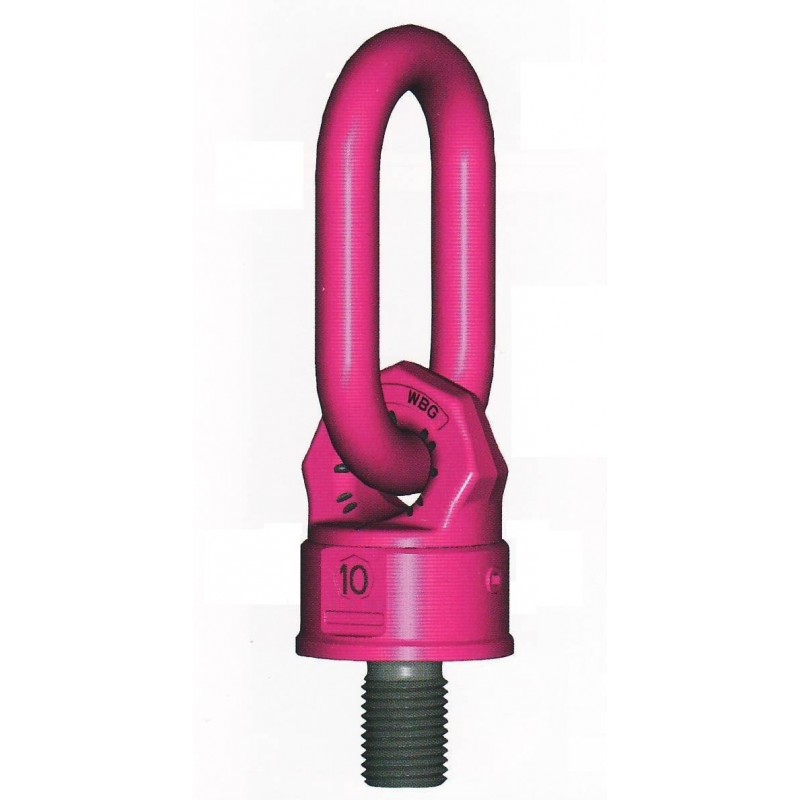

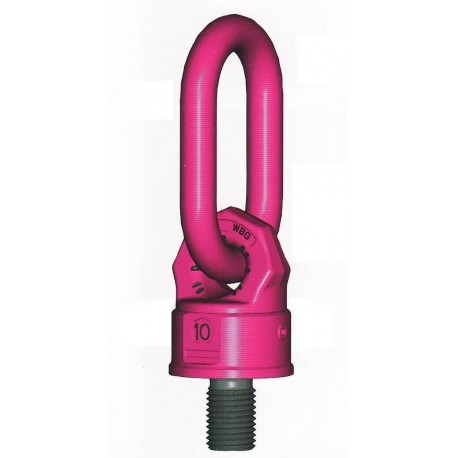

VWBG  Load ring, UNC thread - RUD View larger

VWBG Load ring, UNC thread - RUD

With increased WLL in axial direction and when load ring is aligned. Surface: Pink powder coated  For all loads, which have to be flipped and turned-over.
Loadable in any direction: Safety factor 4 Can be turned under load. Cannot be turned continuously in 90° direction at full load. Simple assembly, just a tapped hole is required. High tensile, tested lifting lug acc. to EN1677-4.

More details

Price:

on demand

More info

With increased WLL in axial direction and when load ring is aligned.

  • Surface: Pink powder coated
  • For all loads, which have to be flipped and turned-over.
  • Loadable in any direction: Safety factor 4
  • Can be turned under load. Cannot be turned continuously in 90° direction at full load.
  • Simple assembly, just a tapped hole is required.
  • High tensile, tested lifting lug acc. to EN1677-4.

Product combinations

Model Capacity WLL in kg Thread The standard length of thread, mm
VWBG 6(7,5) M33 6 000 (7 500) M33
VWBG 8(10) M36-39 8 000 (10 000) M36-39 54
VWBG 12(13) M42-45 12 000 (13 000) M42-45 63
VWBG 12(15) M45 12 000 (15 000) M45 67
VWBG 13(16) M48-52 13 000 (16 000) M48-52 68
VWBG 14(20) M52 14 000 (20 000) M52 78
VEBG 16(22) M56-62 16 000 (22 000) M56-62 84
VWBG 16(25) M64-76 16 000 (25 000) M64-76 94
VWBG 31,5(40) M72-76 31 500 (40 000) M72-76 108
VWBG 40(50) M90-150 40 000 (50 000) M90-150 135
