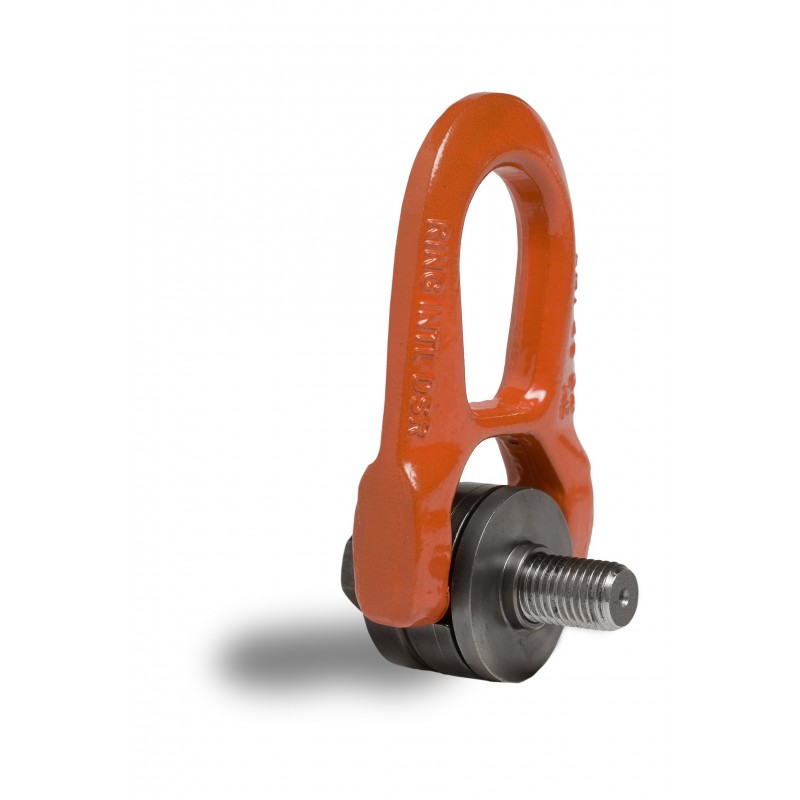

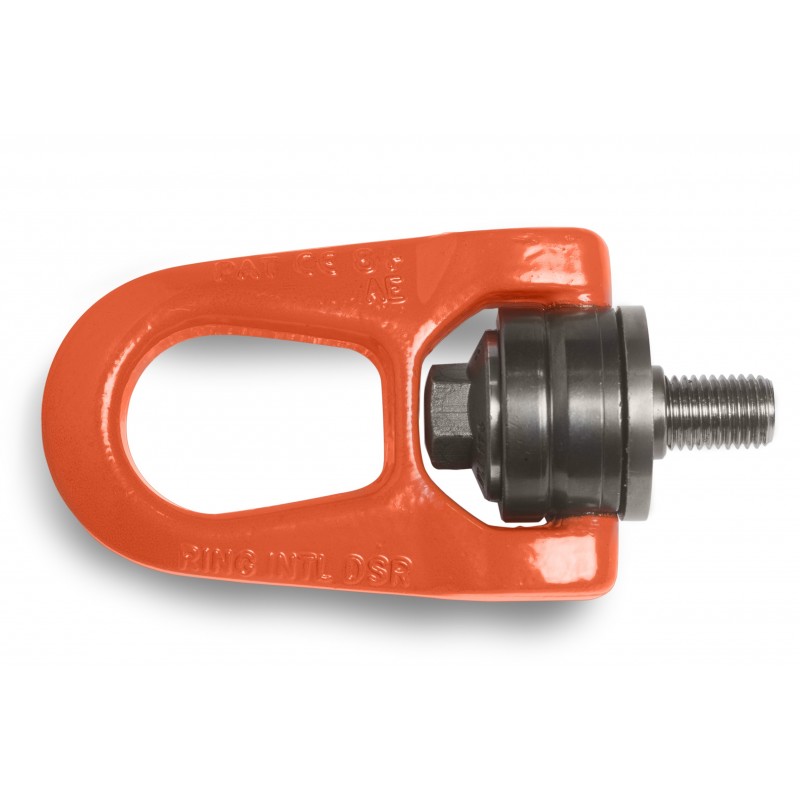

DSR+C Double Swivel Ring + Centring CODIPRO

Capacity 50 - 6 300 kg

The double swivel ring DSR has been especially designed to guarantee liftings under load. Thanks to the centring system (+C), the resistance of the axis is reinforced, when the swivel ring is fixed laterally on the charge to load.

More details

Price:

on demand

More info

The double swivel ring DSR has been especially designed to guarantee liftings under load. Thanks to the centring system (+C), the resistance of the axis is reinforced, when the swivel ring is fixed laterally on the charge to load.

  • Double articulation allows it to line up perfectly with the sling
  • Two ways of tightening: either by open-ended spanner or by Allen key
  • From M8 to M30 as standard; for loads from 0.3 t to 6.3 t
  • From UNC 3/8" to UNC 1" as standard; for loads from 1,200 lbs to 10,000 lbs
  • Other variants of fitting bolts on request
  • Equipped with the patented centring system

Product combinations

Model Capacity WLL in kg Thread Safety factor The standard length of thread, mm
DSR+ C M 4 50 M 4 (x0,7) 5 15
DSR+C M 5 75 M 5 (x0,8) 5 45
DSR+C M 6 100 M 6 (x1) 5 15
DSR+C M 8 500 M 8 (x1,25) 5 14
DSR+C M 10 800 M 10 (x1,5) 5 17
DSR+C M 12 1 200 M 12 (x1,75) 5 21
DSR+C M 14 1 300 M 14 (x2) 5 23
DSR+C M 18 2 000 M 18 (x2,5) 5 27
DSR+C M 16 2 000 M 16 (x2) 5 27
DSR+C M 20 2 700 M 20 (x2,5) 5 30
DSR+C M 22 3 000 M 22 (x2,5) 5 33
DSR+C M 24 5 000 M 24 (x3) 5 36
DSR+C M 27 5 000 M 27 (x3) 5 40
DSR+C M 30 6 300 M 30 (x3,5) 5
