TSD / YALE TSD Screw clamp View larger

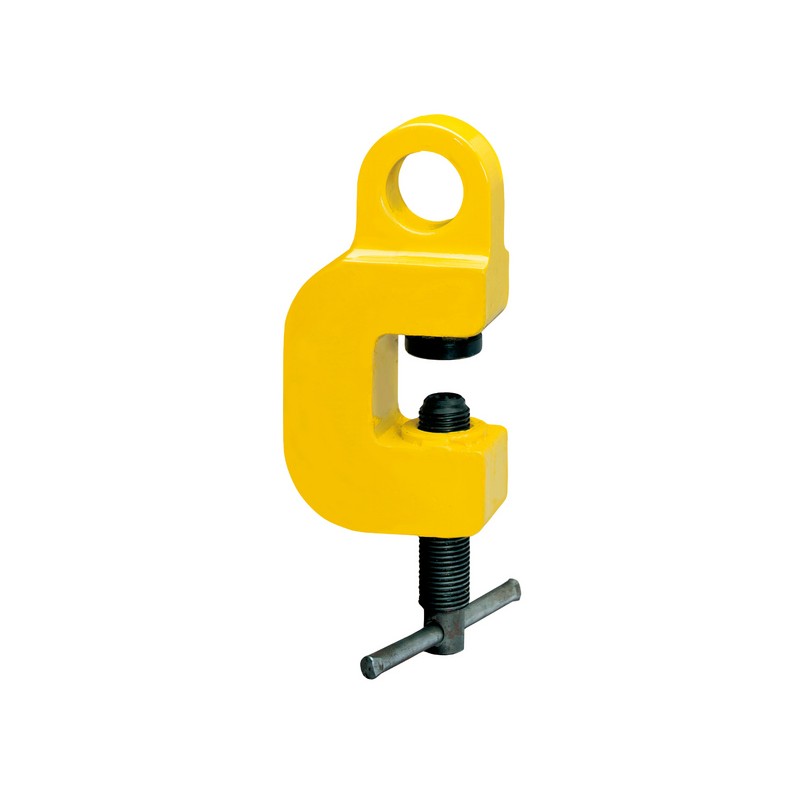

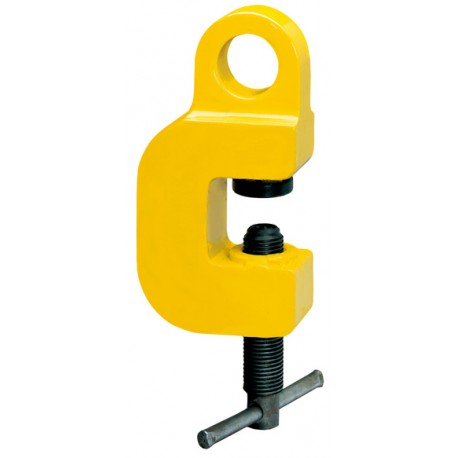

YALE TSD Screw clamp

Capacity 1500 - 7500 kg

The TSD screw clamp is a valuable asset when lifting, pulling and fitting sheet material as well as s teel constructions.

More details

Price:

on demand

More info

  • The TSD screw clamp is a valuable asset when lifting, pulling and fitting sheet material as well as s teel constructions.
  • The spindle is closed only finger tight. When the screw clamp is tightened and lifting begins, the pivoting pad clamping system produces a wedging action against the material, holding it securely.

Details

  • The plate surface of the material must not exceed a hardness level of HRC 50.

Product combinations

Model Capacity WLL in kg Jaw capacity, mm
TSD 1,5 1 500 0 - 35
TSD 3,0 3 000 0 - 35
TSD 5,0 5 000 0 - 40
TSD 7,5 7 500 0 - 40
