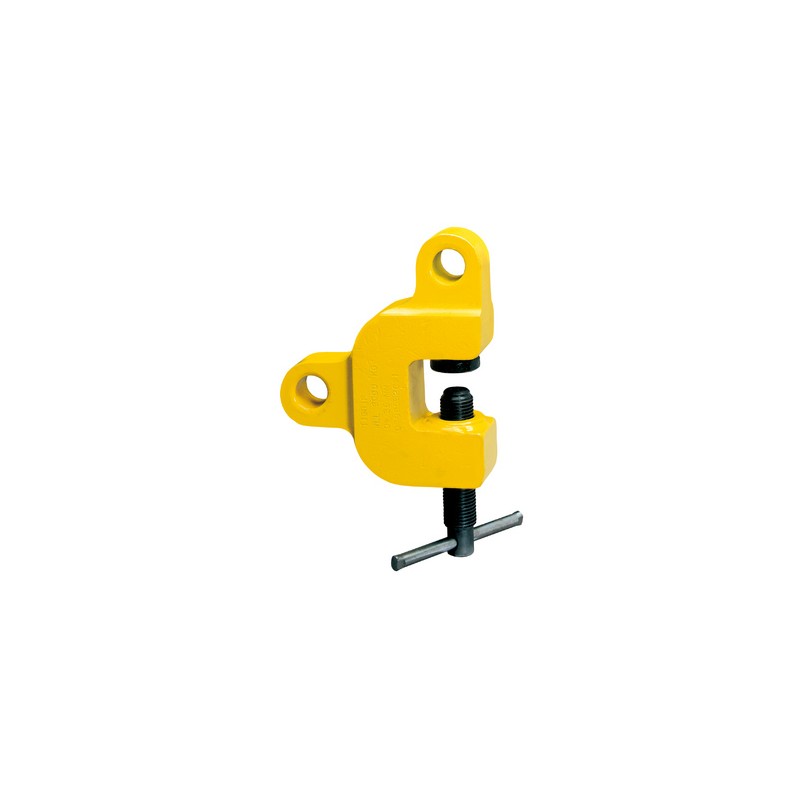

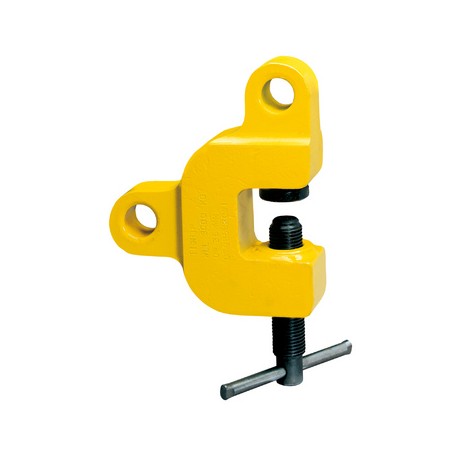

YALE TSZ Screw clamp
Capacity 500 - 7500 kg
The TSZ screw clamp is designed to pull in three directions. It offers many different possibilities for transporting steel constructions, feeding machining centres, etc.
Price:
on demand
More info
- The TSZ screw clamp is designed to pull in three directions.
- It offers many different possibilities for transporting steel constructions, feeding machining centres, etc.
- The spindle is closed only finger tight. When the screw clamp is tightened and lifting begins, the pivoting pad clamping system produces a wedging action against the material, holding it securely.
Product combinations
| Model | Capacity WLL in kg | Jaw capacity, mm |
|---|---|---|
| TSZ 0,5 | 500 | 0 - 28 |
| TSZ 1,5 | 1 500 | 0 - 35 |
| TSZ 3,0 | 3 000 | 0 - 35 |
| TSZ 5,0 | 5 000 | 0 - 40 |
| TSZ 7,5 | 7 500 | 0 - 40 |
