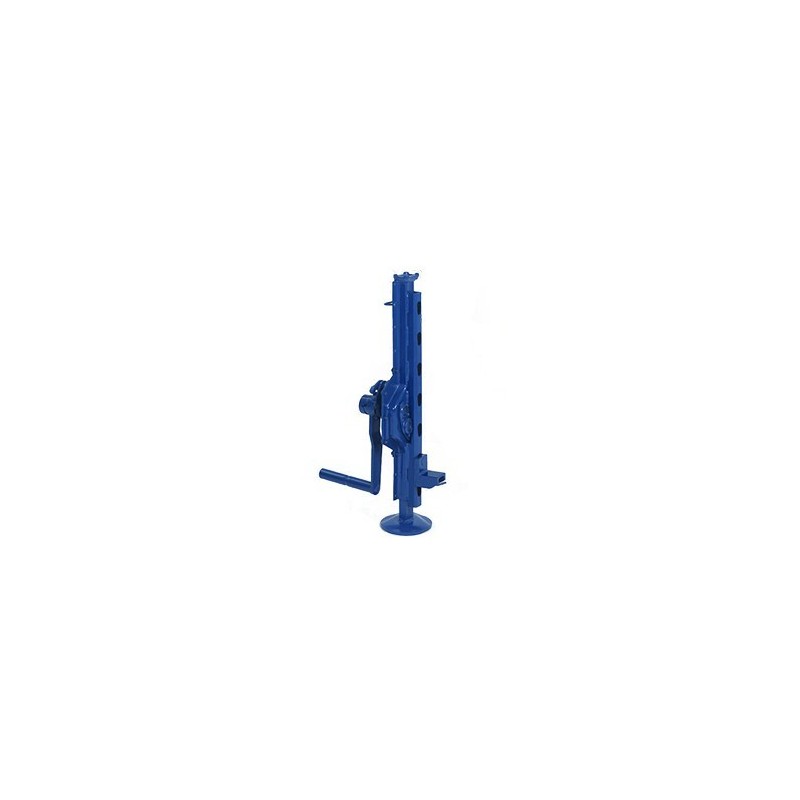

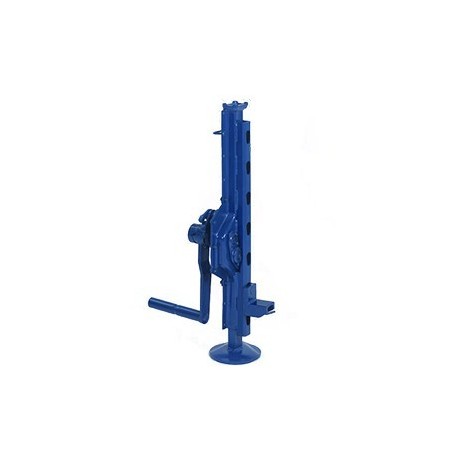

15-00-VK / BRANO 15-00-VK  Rack jack with adjustable rest View larger

BRANO 15-00-VK Rack jack with adjustable rest

Version with standard crank, ratchet crank and ratchet crank-lever

More details

Price:

on demand

More info

Version with standard crank, ratchet crank and ratchet crank-lever

 Use:

  • for lifting and manipulating loads of various types
  • for assembly work of all kind
  • also in variant for use in explosive environment  (marking NEXP)

Characteristics:

  • robust and “indestructible” construction
  • lifting by head or adjustable rest, which allows optimal use of rack bar lift
  • the option of setting 7 positions of the side rest
  • reliably holds the load in any position using the lock built into the crank
  • acceptable actuating force in crank
  • increased operating comfort in the version with the ratchet handle ( “RK“ symbol)  and ratchet-crank lever (“RKP” symbol)
  • low maintenance requirements
  • casing of the transmission (for lifting capacity from 2,5t – 10t) has lubrication plug allowing transmission lubrication without removal of casing
  • meets requirements of CSN EN 1494

Product combinations

Model Capacity WLL in kg Format
15-00-VK-2,5 2 500 Crank
15-00-VK-RKP-2,5 2 500 Ratchet crank-lever
15-00-VK-RK-2,5 2 500 Ratchet crank
15-00-VK-RKP-5 5 000 Ratchet crank-lever
15-00-VK-RK-5 5 000 Ratchet crank
15-00-VK-5 5 000 Crank
15-00-VK-RKP-10 10 000 Ratchet crank-lever
15-00-VK-RK-10 10 000 Ratchet crank
15-00-VK-10 10 000 Crank
