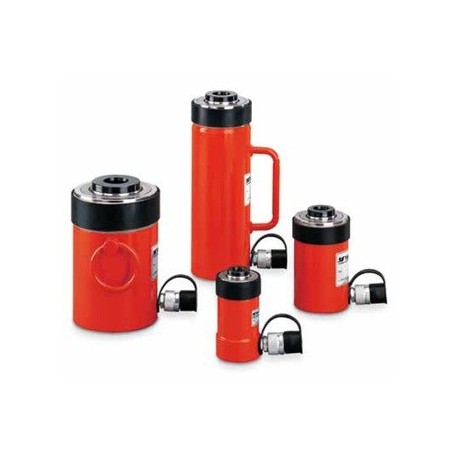

YALE YCS Hollow cylinders

Single-acting with spring return, capacity 12 - 93 t

Due to the centre hole design a threaded rod can be placed through the hollow cylinders so that extremely high pulling forces can be achieved.

More details

Price:

on demand

More info

Due to the centre hole design a threaded rod can be placed through the hollow cylinders so that extremely high pulling forces can be achieved. Hollow cylinders are used as the power component within hydraulic puller sets, for prestressing anker bolts, removing axles, shafts, bushings, extracting tubes, as well as for heavy-duty pulling applications.

 Features

  • Yale ChroMo-Design.
  • Operating pressure max. 700 bar.
  • Sing le-acting with spring return.
  • With large centre hole diameter.
  • Cylinder body and piston are made from solid chromium-molybdenum steel and heat-treated.
  • Hard-chromium plated piston with replaceable, heat-treated saddle.
  • Metric mounting threads at cylinder body and inside of piston.
  • Stop ring prevents over travel of the piston up to full operating pressure.
  • Interchangeable hardened saddle.
  • With inner and outer dirt wipers.
  • Oil port thread 3/8 NPT.
  • Incl. female coupler half model CFY-1.
  • From model YCS-21/150 with carrying handle.
  • From model YCS-57/70 with two lifting rings.



Function principal of the hollow cylinders

In connection with threaded rods hollow cylinders can produce extremely high forces which are helpful for various repair or assembly applications like removing press-fitted parts, prestressing anchors etc. In addition, hollow cylinders are used as power source in puller sets and test rigs. By the use of long threaded rods and by readjusting the nut larger distances can be pulled even when using short cylinder strokes.

Product combinations

Model Lift, mm Lashing capacity, kN
YCS-12/40 40 120
YCS-21/50 50 214
YCS-33/60 60 335
YCS-57/70 70 567
YCS-93/75 75 930
YCS-12/75 75 120
YCS-33/150 150 335
YCS-62/150 150 618
YCS-21/150 150 214
