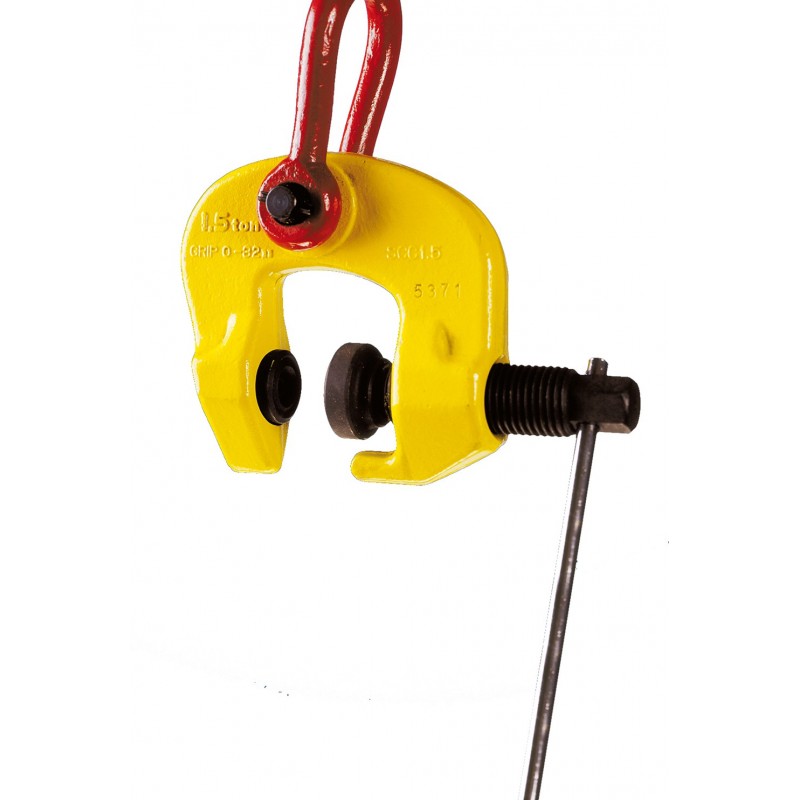

TSCC / TSCC-W Screw clamps TERRIER

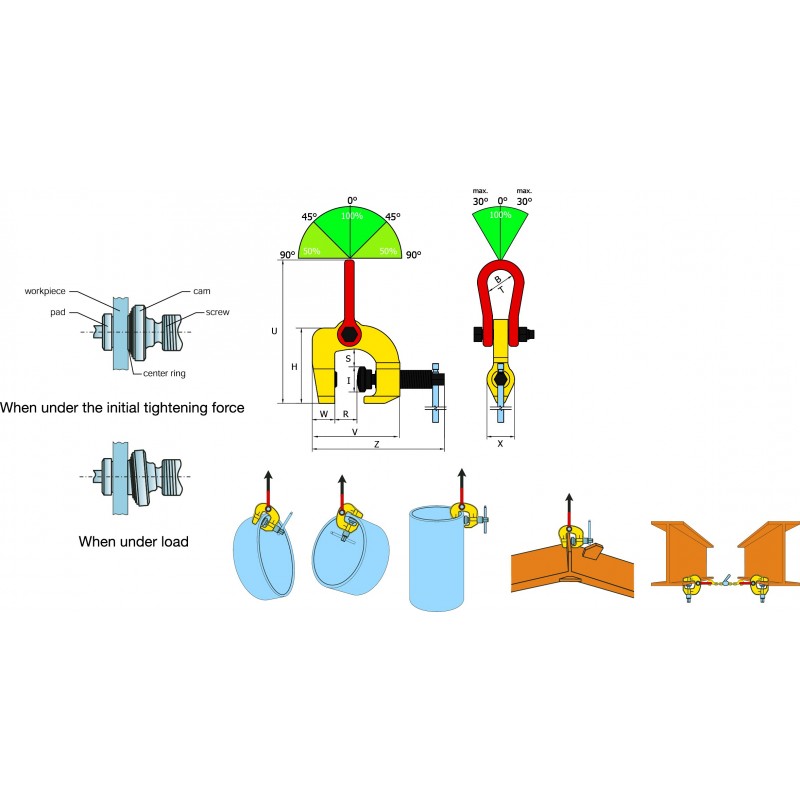

Universal screw clamp for vertical and horizontal lifting and moving of a large variety of steel structures. The TSCC screw clamp is fitted with a moveable cam on the thread spindle and a fixed pivot on the clampbody. This provides a powerful clamping force on the workpiece. The moveable lifting eye ensures a secure mounting of the clamp.
Price:
on demand
More info
Universal screw clamp for vertical and horizontal lifting and moving of a large variety of steel structures.
- The TSCC screw clamp is fitted with a moveable cam on the thread spindle and a fixed pivot on the clampbody.
- This provides a powerful clamping force on the workpiece.
- The moveable lifting eye ensures a secure mounting of the clamp.
Product combinations
| Model | Capacity WLL in kg | Jaw-opening, mm |
|---|---|---|
| 0.5TSCC | 500 | 0-35 |
| 1TSCC-W | 1 000 | 50-100 |
| 1TSCC | 1 000 | 0-30 |
| 1.5TSCC | 1 500 | 0-40 |
| 3TSCC | 3 000 | 0-60 |
| 3TSCC-W | 3 000 | 24-75 |
| 6TSCC | 6 000 | 0-100 |
