YALETAURUS Ratchet jack YALE View larger

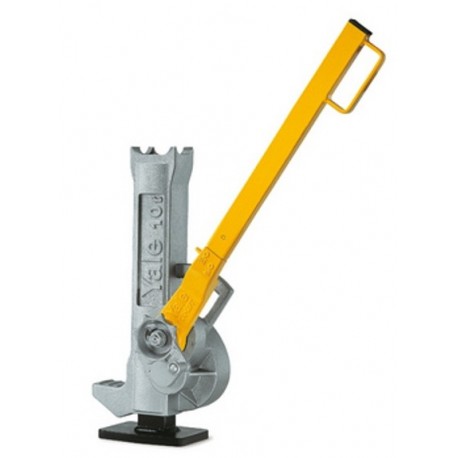

PFAFF YALETAURUS Ratchet jack

Capacity 10000 kg

Mechanical ratchet jacks with lifting claw are designed for operation in confined areas where space below the load is restricted, thus preventing the use of traditional lifting equipment.

More details

Price:

on demand

More info

Mechanical ratchet jacks with lifting claw are designed for operation in confined areas where space below the load is restricted, thus preventing the use of traditional lifting equipment.

  • The Yaletaurus is the ideal unit for lifting, positioning or transportation of machines resp. heavy objects as well as for repair and assembly jobs in cramped areas and under toughest conditions.
  • In spite of its capacity of 10000 kg the Yaletaurus has a weight of just 30 kg and the integrated carrying handle makes it a portable, versatile tool.
  • With a hand force of 45 kg on the detachable hand lever, the Yaletaurus will lift, press, push or lower a load of 10000 kg in any direction.
  • A standard crank wheel will bring the jack quickly to the required position.

Features

  • Automatic screw-and-disc type load brake. The axial brake pressure is generated by the load itself and is, therefore, proportional to the size of the load. The load is held secure in any position.
  • Single part housing made from spheroidal cast iron with integrated lifting claw.
  • The screw-and-disc type load brake originates from the Yale PUL-LIFT® (spare parts are easily available).
  • Low lever pull and long life endurance due to optimum gearing and high quality materials.

Product combinations

Model Capacity WLL in kg Lift, mm
TAURUS 10 000 295
