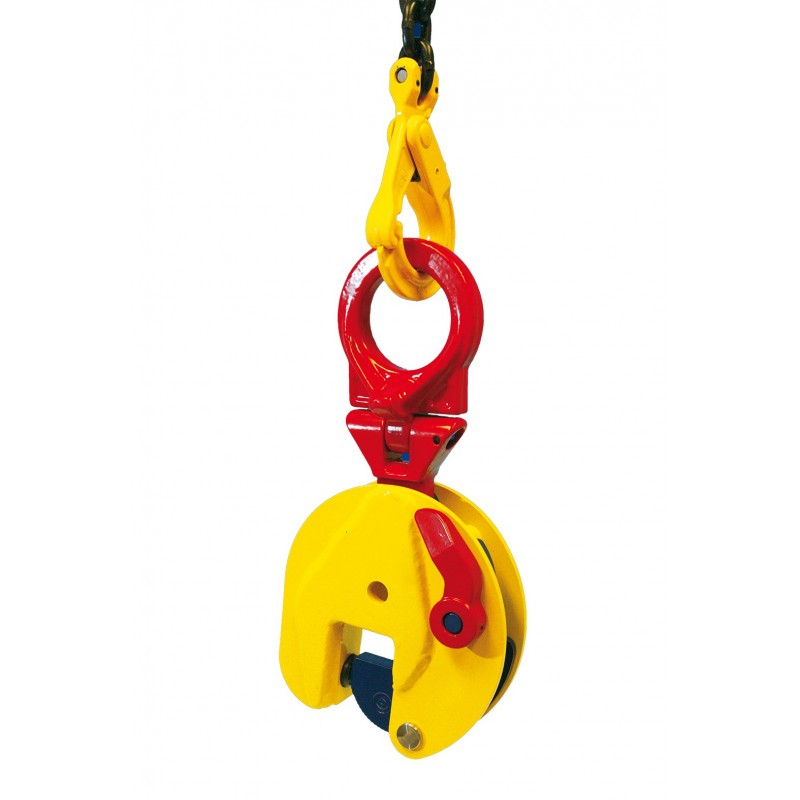

TSU / TSEU / STSU vertical clamp TERRIER

Capacity 750 - 30 000 kg

Clamp-version with moveable lifting shackle for lifting and moving steel plates and structures from all positions (horizontal, vertical and sidelong). TSU, STSU Lifting clamps are equipped with a safety mechanism, ensuring the clamp does not slip when lifting force is applied and when load is being lowered.

More details

Price:

on demand

More info

Clamp-version with moveable lifting shackle for lifting and moving steel plates and structures from all positions (horizontal, vertical and sidelong). TSU, STSU Lifting clamps are equipped with a safety mechanism, ensuring the clamp does not slip when lifting force is applied and when load is being lowered.

The clamp is locked in closed as well as in open position. Lifting capacity and jaw openings are clearly engraved in the body.

STSU type clamps are supplied with a larger jaw opening.

Minimum W.L.L. is 10% of the maximum W.L.L.

Features and benefits:
  • With articulated lifting shackle for universal lifting flexibility at various angles

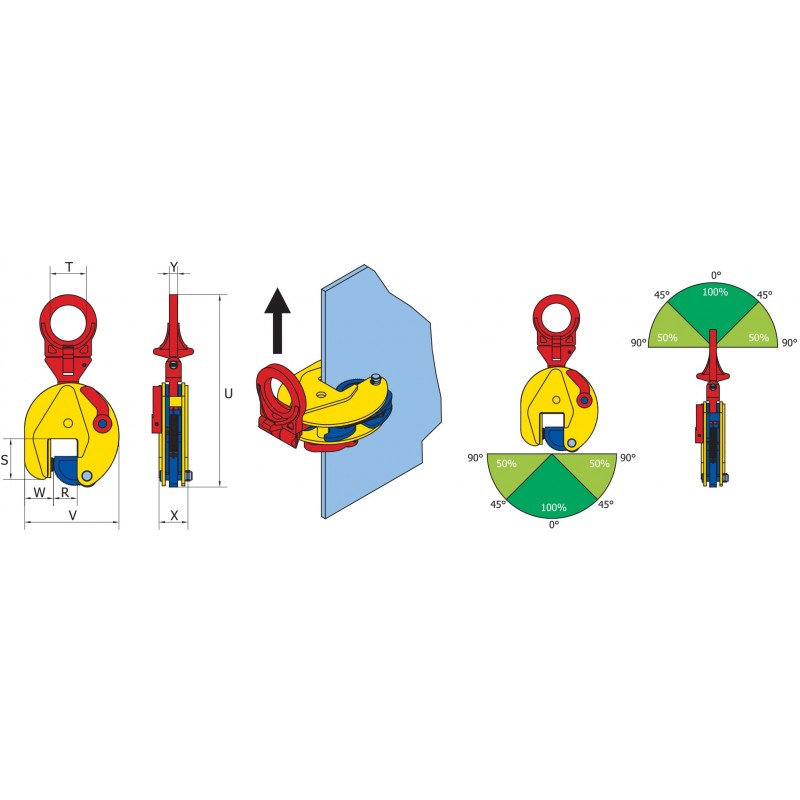

  • The articulated lifting shackle guarantees a pressure grip in every position, even when side loading up to 90 degrees . Note a lower load capacity when lifting in an angle higher than 45 degrees . Please check the WLL reduction below
  • Longer plates can be lifted without the use of a spreader beam when using two clamps on a two legged chain sling
  • Always equipped with a safety mechanism, ensuring the clamp does not slip when VertiCal lifting lifting force is applied and when load is being lowered
  • Clamp is locked in closed as well as open position
  • Lightweight, maintenance-friendly, heavy duty body

Product combinations

Model Capacity WLL in kg Jaw-opening, mm
0.75TSU 750 0-13
1TSEU 1 000 0-25
2TSEU 2 000 0-35
3TSEU 3 000 0-35
4.5TSEU 4 500 0-45
4.5TSU 4 500 0-25
6TSU 6 000 0-32
6STSU 6 000 40-90
6TSEU 6 000 0-50
7.5TSEU 7 500 0-55
7.5STSU 7 500 50-100
7.5TSU 7 500 0-40
9TSU 9 000 0-55
9STSU 9 000 50-100
12TSU 12 000 0-52
12STSU 12 000 50-100
15TSU 15 000 0-76
15STSU 15 000 80-150
17TSU 17 000 0-76
20STSU 20 000 80-150
20TSU 20 000 0-80
25TSU 25 000 5-85
25STSU 25 000 80-150
30TSU 30 000 10-90
30STSU 30 000 80-150
