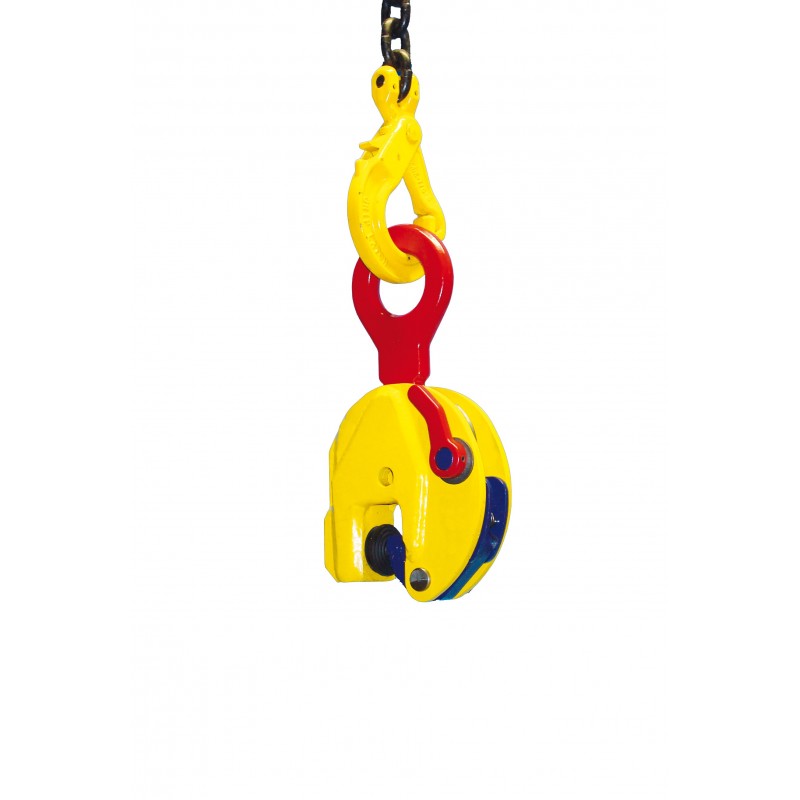

TJP / TJPU vertical clamp TERRIER

For vertical lifting and moving of panels and plates. If the clamp is being loaded, the cams will pull out sideways and will
grip into the sides of the load. The TJP clamp is locked in closed as well as in open position. Lifting capacity and jaw opening are clearly engraved in the body. Clamp type TJPU is equipped with a moveable lifting shackle.

More details

Price:

on demand

More info

For vertical lifting and moving of panels and plates.
  • If the clamp is being loaded, the cams will pull out sideways and will grip into the sides of the load.
  • The TJP clamp is locked in closed as well as in open position.
  • Lifting capacity and jaw opening are clearly engraved in the body.
  • Clamp type TJPU is equipped with a moveable lifting shackle.

Product combinations

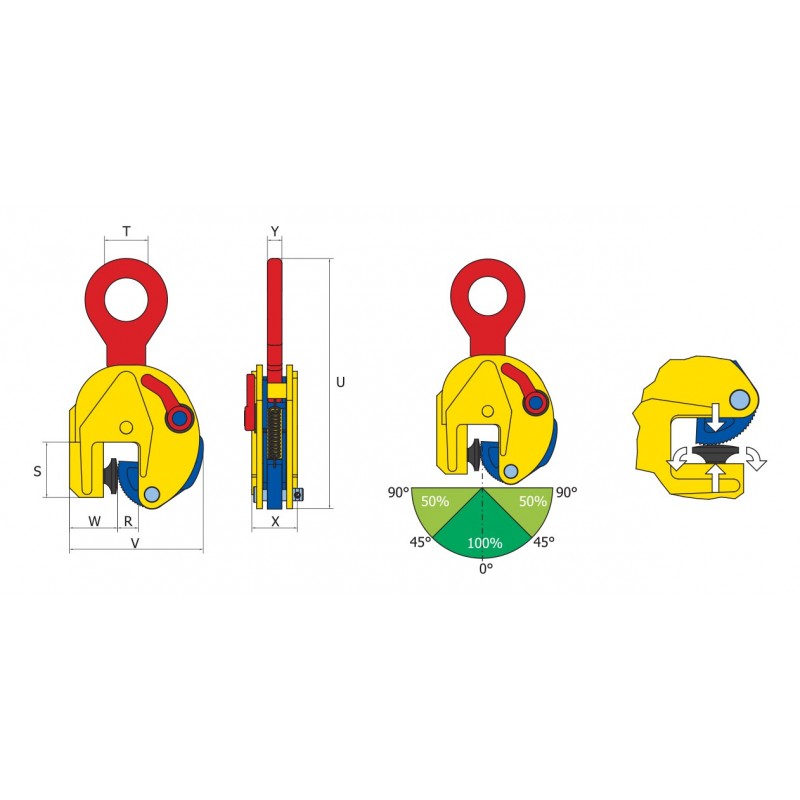

Model Capacity WLL in kg Jaw-opening, mm
0,25TJPU 250 0-13
0.25TJP 250 0-13
1TJP 1 000 0-20
