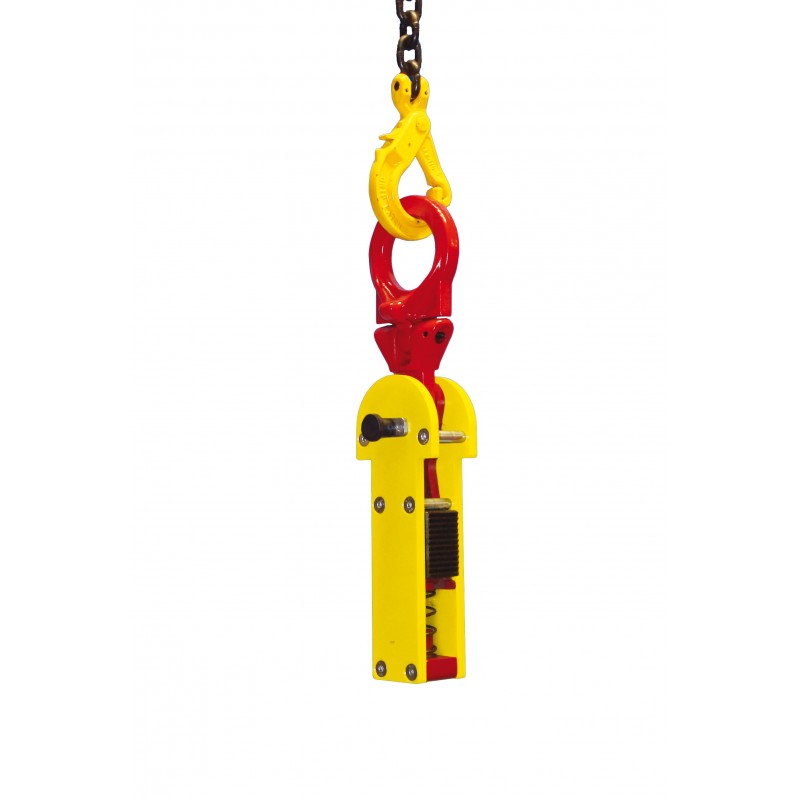

TCK vertical lifting clamps TERRIER

For vertical lifting and transporting of structures where a square tube is used as frame. For example mobile units etc.

More details

Price:

on demand

More info

  • For vertical lifting and transporting of structures where a square tube is used as frame. For example mobile units etc.

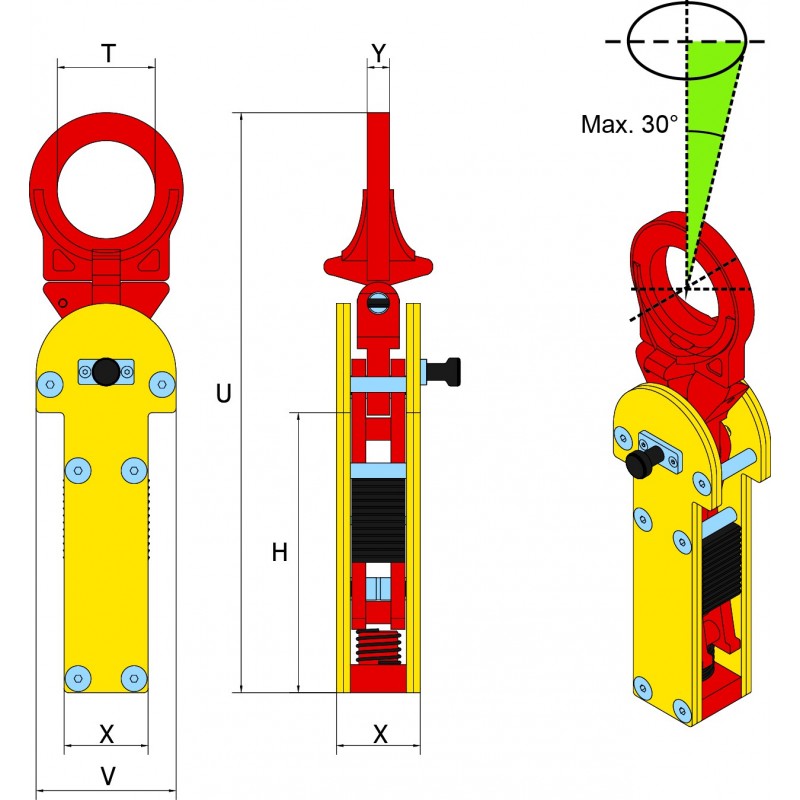

  • The clamp can fit into the profile and as the clamps will be vertical forced the cam will grip into the side of the square tube.
  • Because of the compact form of the clamp it needs not more space than the outside dimension of the square tube.
  • The clamp is fitted with a universal lifting eye.

Product combinations

Model Capacity WLL in kg Jaw-opening, mm
3TCK 3 000 62-70
