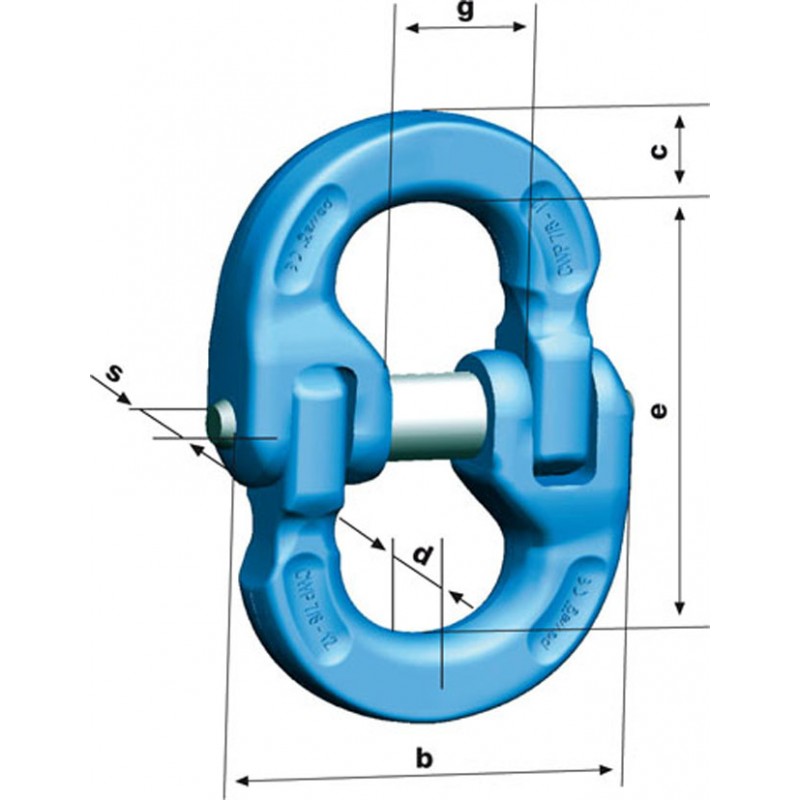

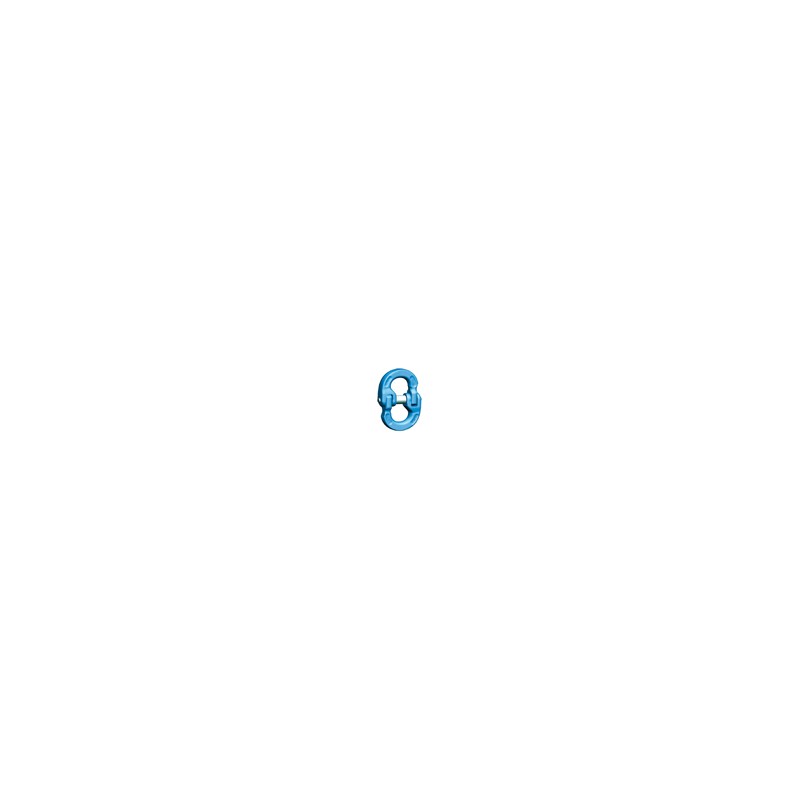

This is a universal connecting link that consists of two die-forged, identical halves, a bolt and a safety sleev.
Warning: Last items in stock!
This is a universal connecting link that consists of two die-forged, identical halves, a bolt and a safety sleeve and is manufactured according to EN 1677-1 with a load capacity according to G12. Thanks to the use of a safety sleeve, the design of this connecting link is extremely slim, thereby maximising the use of space – a great advantage compared to competitor products. The links may be assembled and disassembled by a competent person up to three times before the pin and the sleeve must be replaced (both are available as a spare parts set).
BG-approval is just one of the many benefits offered by the CWP Connex connecting link – the simplest way to assemble pewag winner pro chains, master links, master link assemblies and accessory parts. The surface of the master link has a light blue powder coating.
|Model||Capacity WLL in kg||Diameter|
|CWP 7||2 360||9 mm|
|CWP 8||3 000||11 mm|
|CWP 10||5 000||13 mm|
|CWP 13||8 000||17 mm|
|CWP 16||12 500||21 mm|
