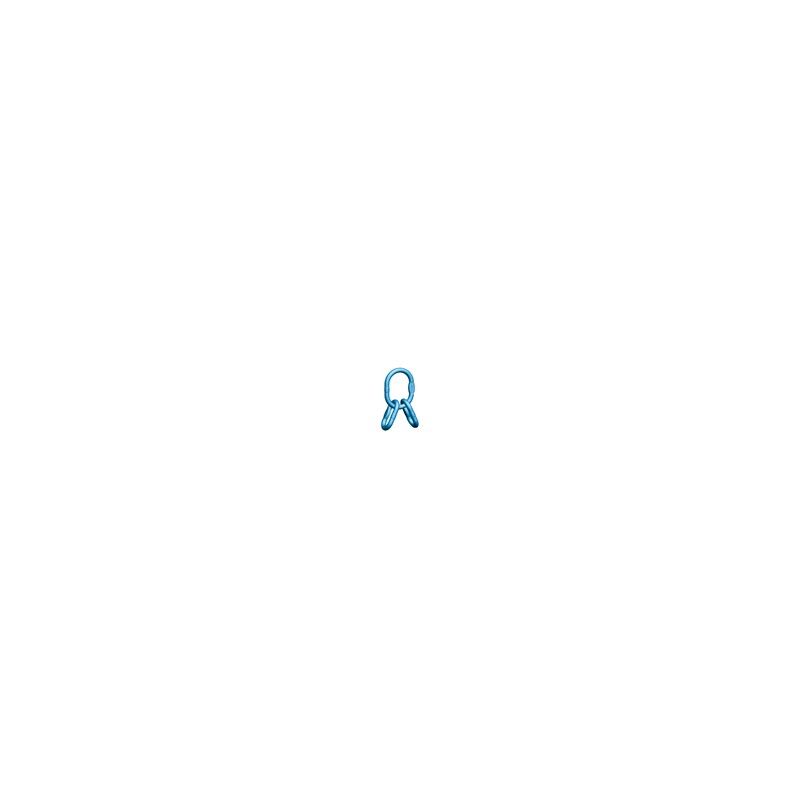

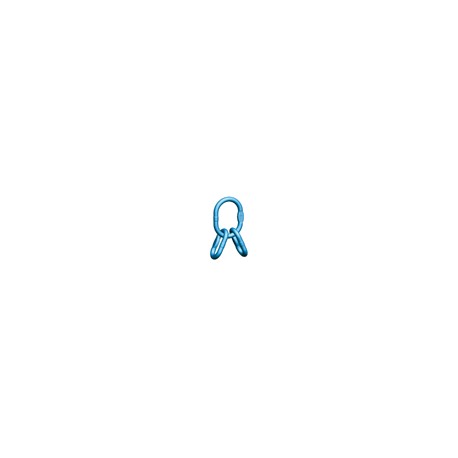

PEWAG VMWP Enlarged master link assembly
A load capacity according to G12, BG-approval and manufacturing according to EN 1677-4 are powerful arguments in favour of this universally usable master link assembly to create II-, III- and IV-leg chain slings for all chain dimensions.
on demand
More info
A load capacity according to G12, BG-approval and manufacturing according to EN 1677-4 are powerful arguments in favour of this universally usable master link assembly to create II-, III- and IV-leg chain slings for all chain dimensions.
Thanks to the flattened section on the transition links, this IV-leg assembly is also compatible with assembly types other than Connex CWP. The surface of the master link has a light blue powder coating. Refer to the table for the correct chain dimension.
Product combinations

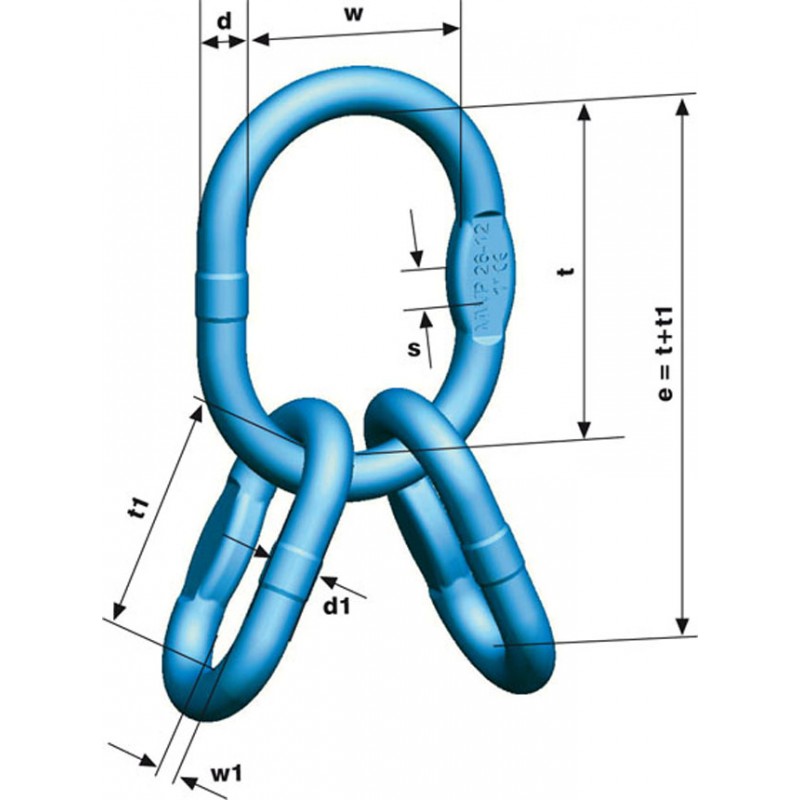

| Model | Capacity WLL in kg | Diameter |
|---|---|---|
| VMWP 7/8 | 4 250 | 19 mm |
| VMWP 10/7/8 | 8 800 | 27 mm |
| VMWP 13/10 | 12 300 | 33 mm |
| VMWP -/13 | 21 200 | 38 mm |
| VMWP -/16 | 26 500 | 38 mm |
