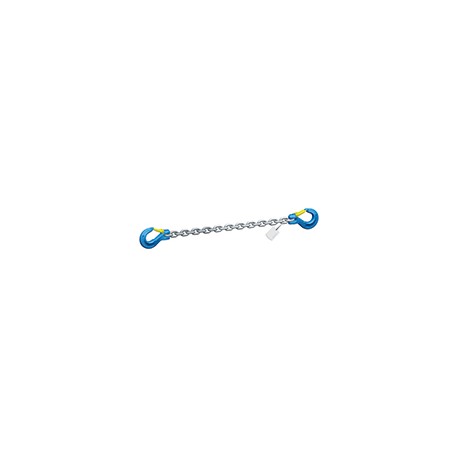

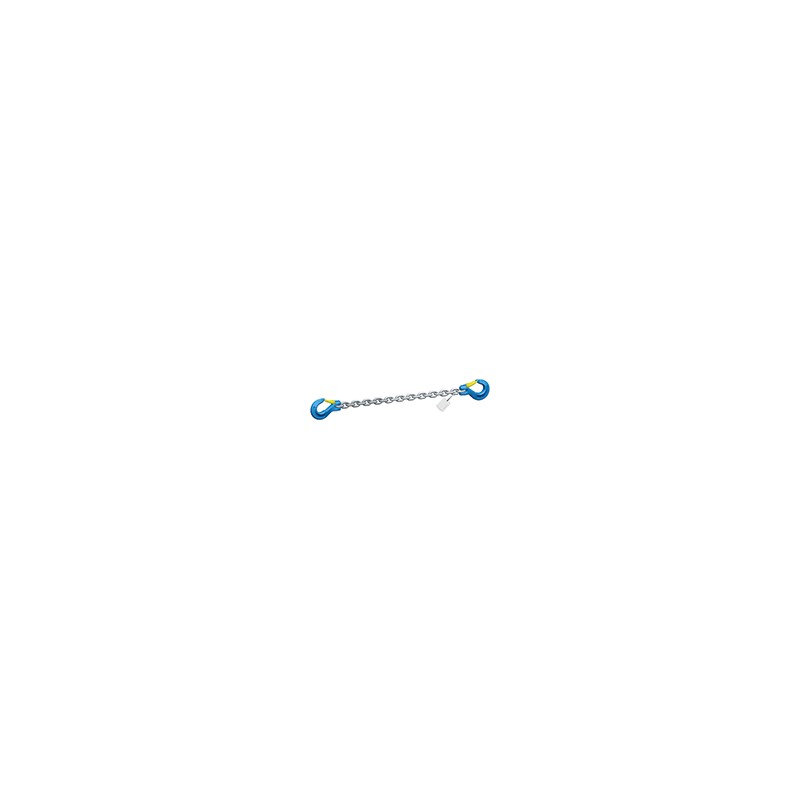

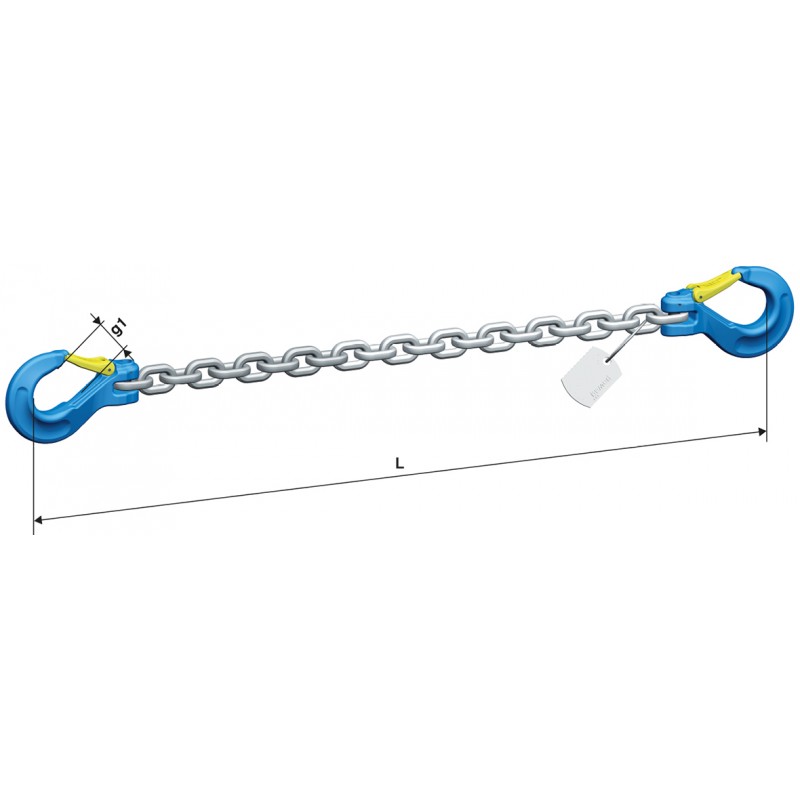

PEWAG ZKWP/ KHSWP-KHSWP Lashing chain

Also this lashing chain is used for a two-part system and it surpasses the requirements of EN 12195-3 as it has a 50 % higher lashing capacity than standard G8 lashing chains.

More details

Price:

on demand

More info

Also this lashing chain is used for a two-part system and it surpasses the requirements of EN 12195-3 as it has a 50 % higher lashing capacity than standard G8 lashing chains. This lashing chain is built with clevis hooks. It comes in a modular design and a standard length of 3,500 mm. Other end fittings/combinations and delivery lengths are available upon request and with short delivery times.
Please note that the product must not be used for lifting or attaching loads. A full operating manual tells you all you need to know about how to use the chain to its best advantage. Make sure you also refer to the tables "Direct lashing" and "Frictional lashing" for a useful overview.

Product combinations

Model Lashing capacity, kN
ZKWP 7200/ KHSWP-KHSWP 3500 47
ZKWP 8200/ KHSWP-KHSWP 3500 60
ZKWP 10200/ KHSWP-KHSWP 3500 100
ZKWP 13200/ KHSWP-KHSWP 3500 160
