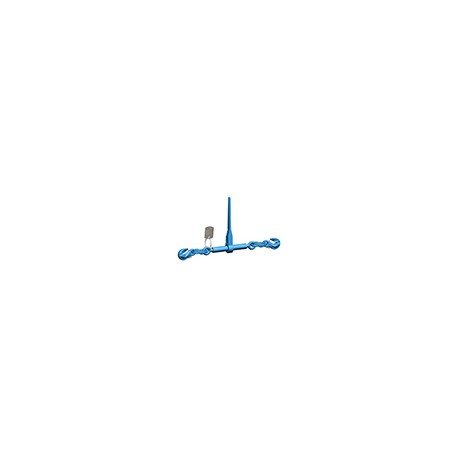

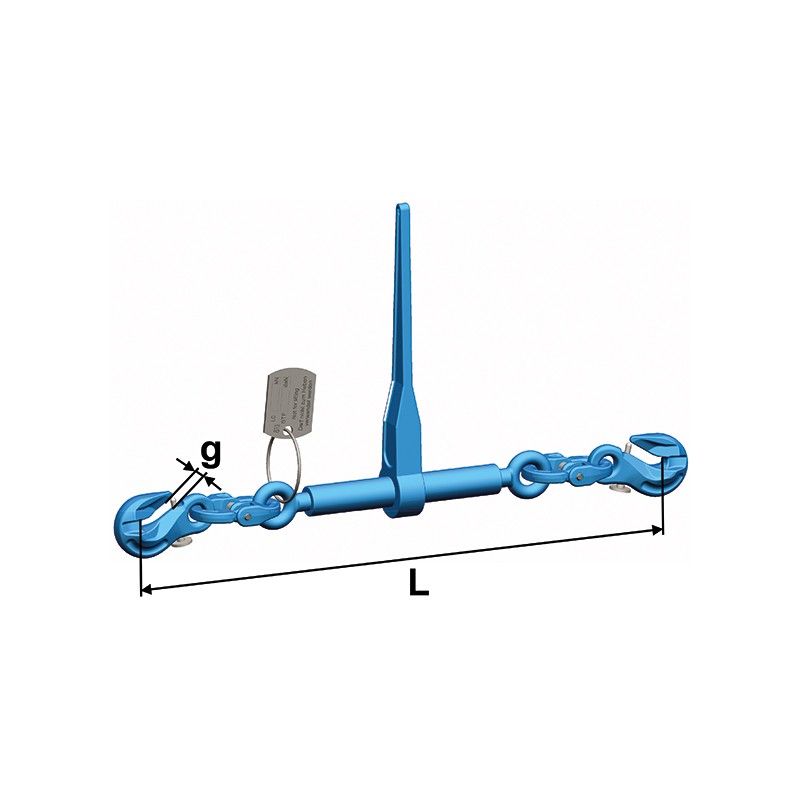

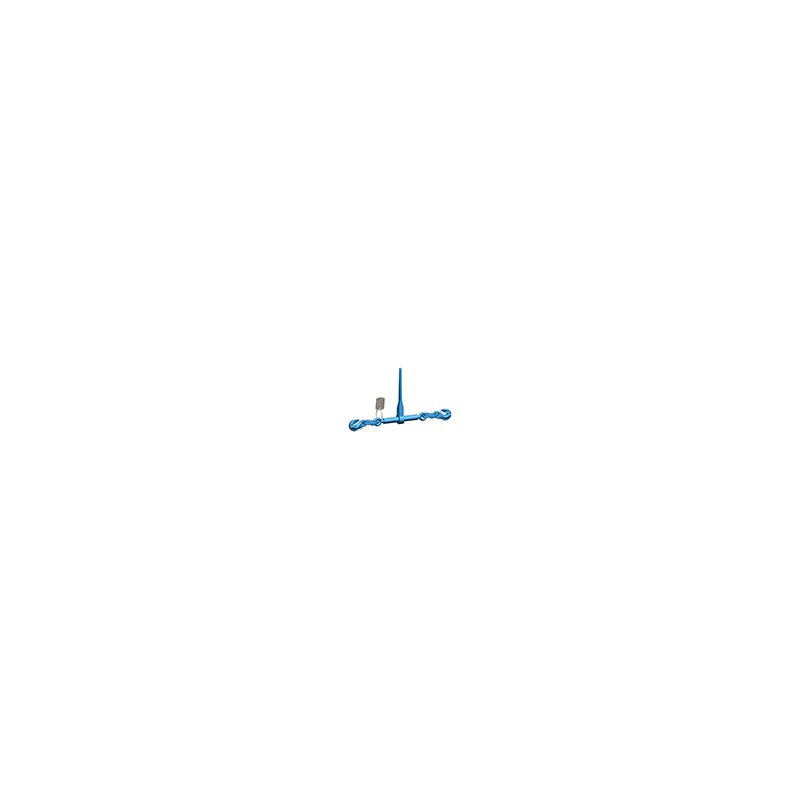

PEWAG RSPSWP Load binder
This load binder for two-part lashing chain systems in accordance with EN 12195-3 is intended for the ZKWP lashing chain.
on demand
More info
This load binder for two-part lashing chain systems in accordance with EN 12195-3 is intended for the ZKWP lashing chain. It includes a pre-mounted shortening hook including safety catch and, depending on the selected lever length, all sizes are also suitable for frictional lashing (always take the STF value into account!).
As specified in the full operating manual, this load binder is not suitable for lifting or attaching loads. The lashing capacity is 50 % higher than for grade 8.
Thanks to the pre-mounted shortening hook, the load binder may be positioned anywhere in the ZKWP lashing chain. In short, this element is bound to create some tension!
Product combinations
| Model | Lashing capacity, kN | Standard tension force STF, daN |
|---|---|---|
| RSPSWP 7 | 47 | 1 900 |
| RSPSWP 8 | 60 | 1 900 |
| RSPSWP 10 | 100 | 3 000 |
| RSPSWP 13 | 160 | 2 500 |
