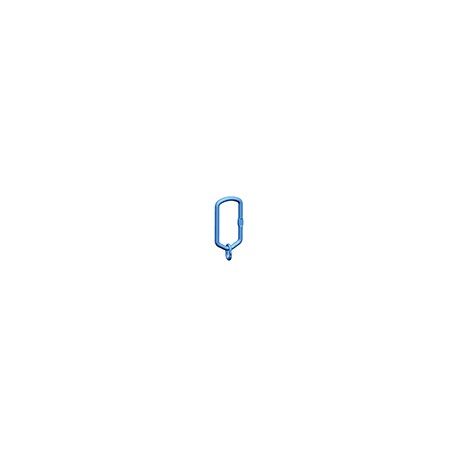

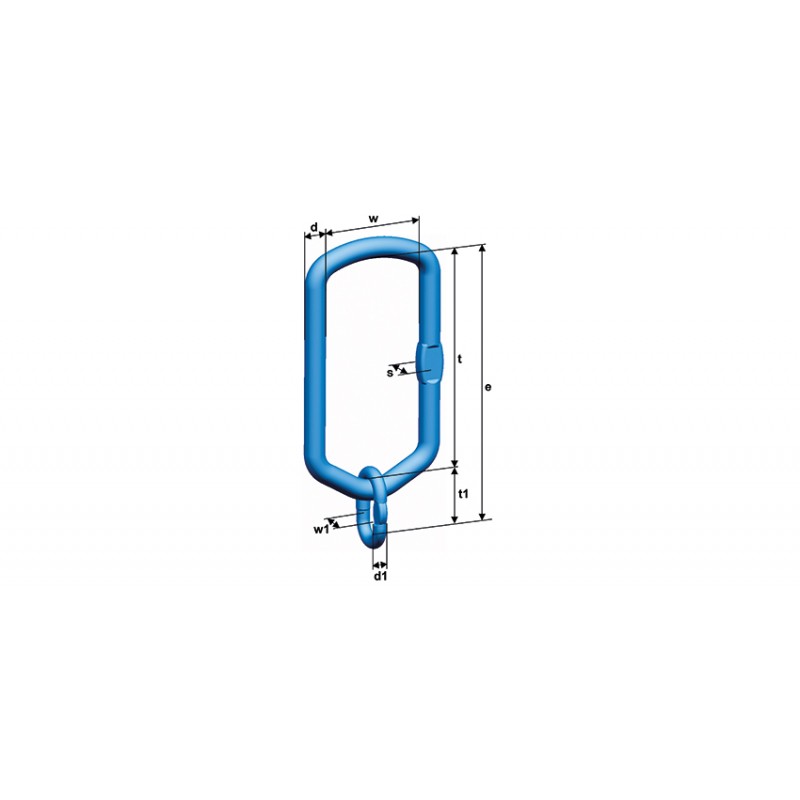

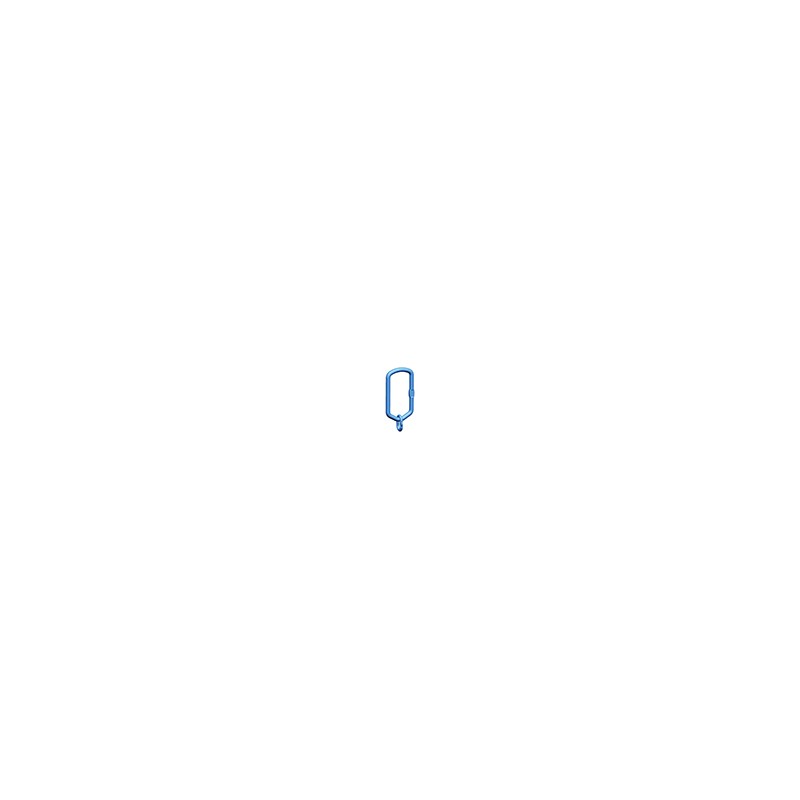

PEWAG VLWP 1 Oversize master link assembly
This asymmetrical master link assembly is equipped with extra-large rings that are perfect for crane hooks. The new design of the upper curve ensures an optimised contact surface on the crane hook.
Price:
on demand
More info
This asymmetrical master link assembly is equipped with extra-large rings that are perfect for crane hooks according to DIN 15401 and up to no. 25. The new design of the upper curve ensures an optimised contact surface on the crane hook. This master link assembly for I-leg chain slings in assembled or welded systems complies with EN 1677-4 and the mechanical values for G12.
The assembly is not just unique when it comes to areas of application, it also comes with CE-marking and a full operating manual.
Product combinations
| Model | Capacity WLL in kg | Diameter |
|---|---|---|
| VLWP 1 - 7/8 | 3 000 | 23 mm |
| VLWP 1 - 10 | 5 000 | 26 mm |
| VLWP 1 - 13 | 8 000 | 28 mm |
| VLWP 1 - 16 | 12 500 | 33 mm |
