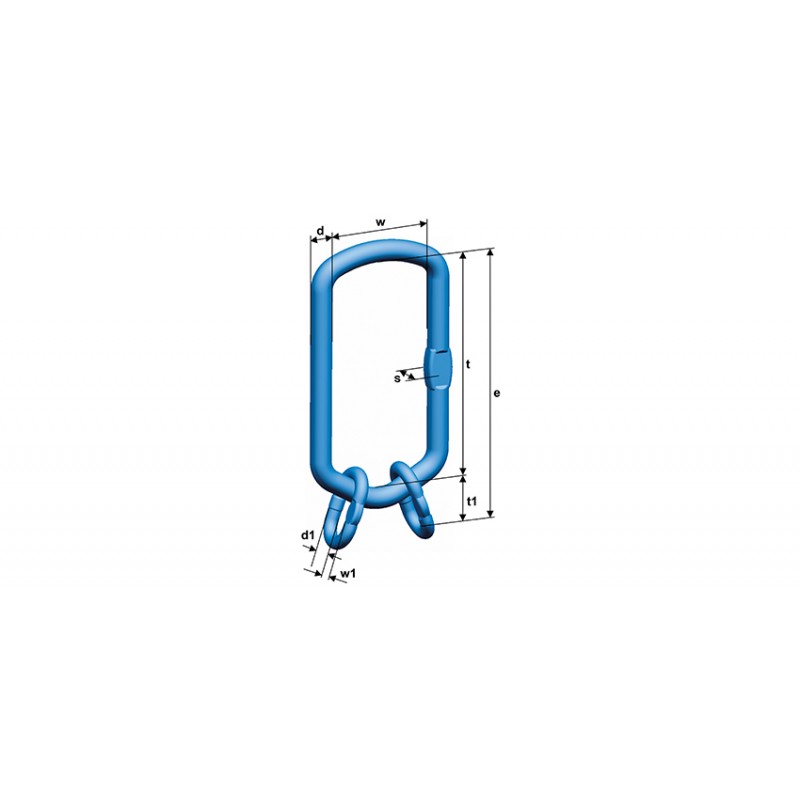

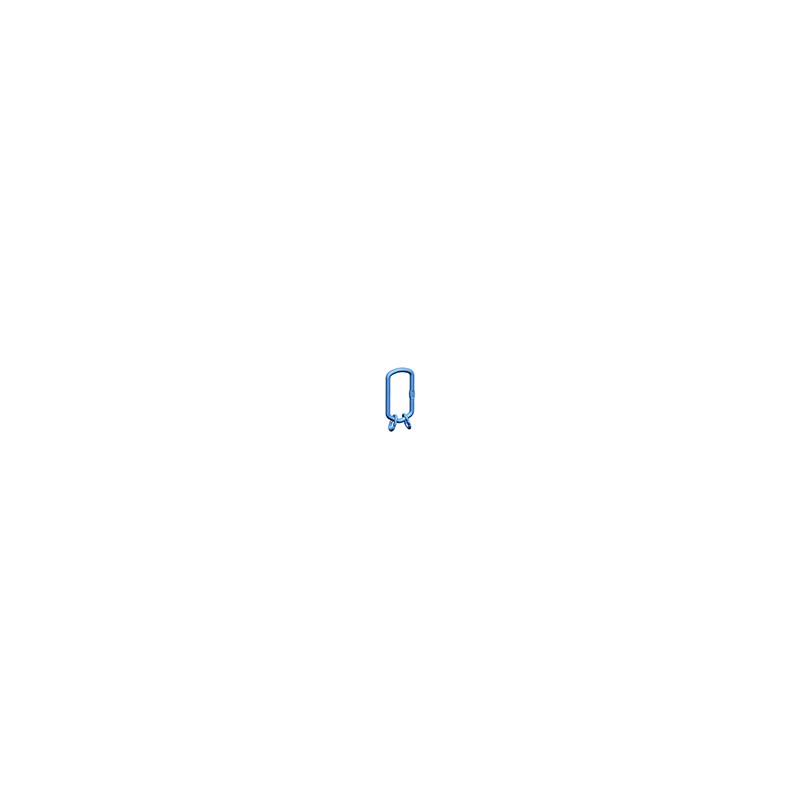

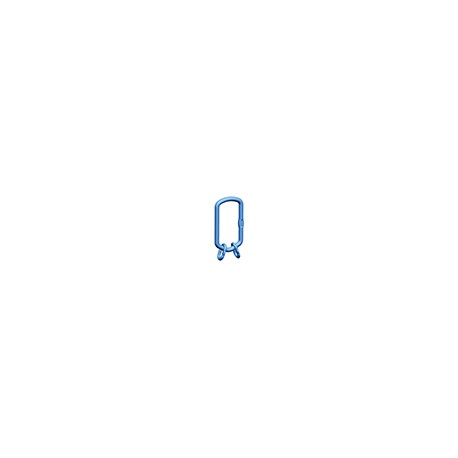

PEWAG VLWP 2/4 Oversize master link assembly
The new oversize lifting eye stands out for its asymmetrical shape and is suitable for the assembly of II- and IV-leg chain slings, both in the assembled and in the welded system.
on demand
More info
The new oversize lifting eye stands out for its asymmetrical shape and is suitable for the assembly of II- and IV-leg chain slings, both in the assembled and in the welded system.
The improved design of the upper curve optimises the contact surface of the assembly on the single hook, manufactured according to DIN 15401. The great plus of this master link assembly is the geometry of the lower area, which allows for the simple and quick assessment of the angle of the inclination, thus greatly increasing safety and efficiency during day-to-day operations and making miscalculations a thing of the past.
Extra-large rings make this master link assembly the perfect partner for crane hooks according to DIN 15401 up to no. 25. The assembly comes with CE-marking and is manufactured according to EN 1677-4, with mechanical values according to G12.
Product combinations
| Model | Capacity WLL in kg | Diameter |
|---|---|---|
| VLWP 2 - 7/8 | 4 250 | 23 mm |
| VLWP 2-10 / 4-7/8 | 7 100 | 27 mm |
| VLWP 2-13 / 4-10 | 11 200 | 33 mm |
| VLWP 2 - 16 | 17 500 | 38 mm |
| VLWP 4 - 13 | 17 000 | 38 mm |
| VLWP 4 - 16 | 26 500 | 40 mm |
