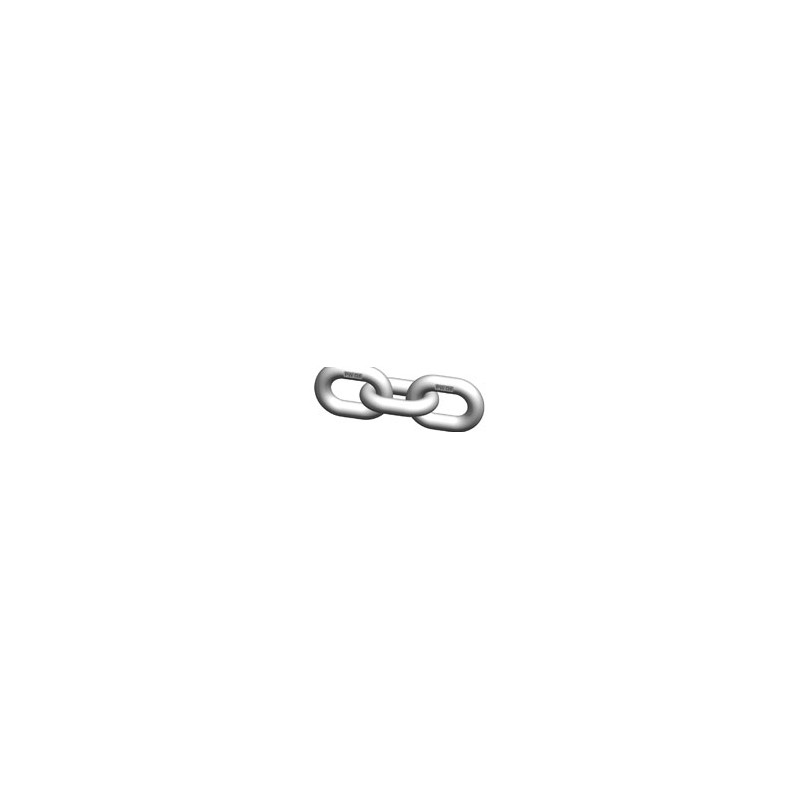

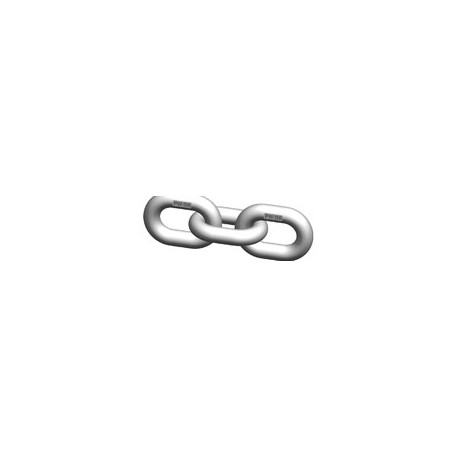

PEWAG WOX Chains
This stainless steel lifting chain is made from high-grade stainless steel, with a load capacity that is 25 % higher than that of G5 lifting chains.
Price:
on demand
More info
This stainless steel lifting chain is made from high-grade stainless steel, with a load capacity that is 25 % higher than that of G5 lifting chains.
The chains are tested at 100 % of their load capacity, which is an impressive 12,000 kg.
The chain is electrically welded for an extra-clean finish, stamped and with a higher resistance to acids and caustics than the standard lifting chains G8, G10 and G12.

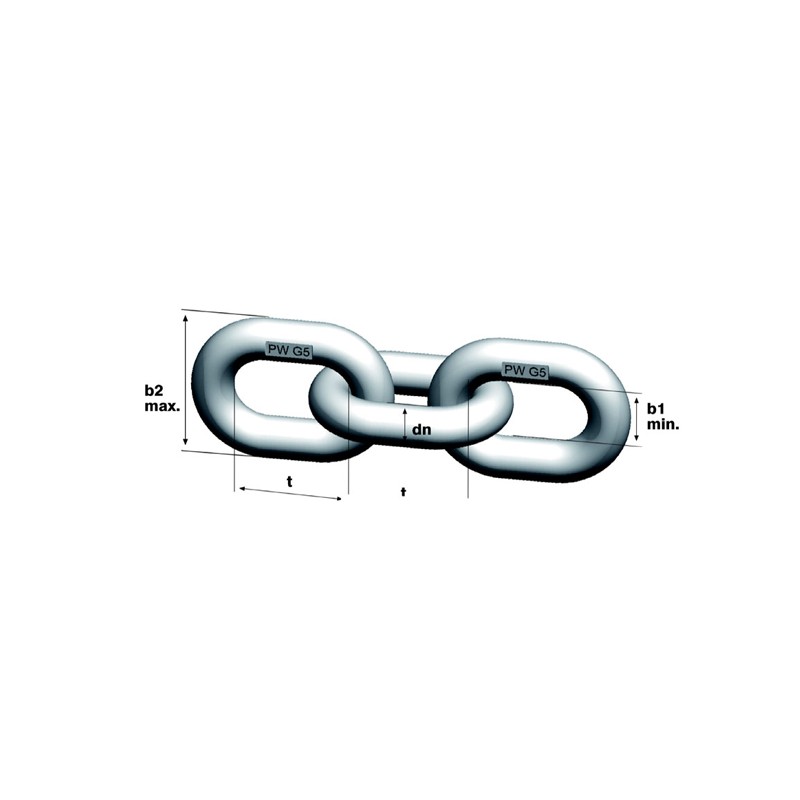

The chain is guaranteed to be compatible with the Connex CWI links, with dimensions that are similar to DIN 5687-1 and EN 818-2. The stamp makes the chains clearly identifiable.
The chains are tested at 100 % of their load capacity, which is an impressive 12,000 kg.
The chain is electrically welded for an extra-clean finish, stamped and with a higher resistance to acids and caustics than the standard lifting chains G8, G10 and G12.
The chain is guaranteed to be compatible with the Connex CWI links, with dimensions that are similar to DIN 5687-1 and EN 818-2. The stamp makes the chains clearly identifiable.
The WOX chain is particularly suited for use in water and wastewater applications. It can also be used in connection with chemicals and food products; however, restrictions will apply.
Product combinations
| Model | Capacity WLL in kg |
|---|---|
| WOX 4-6 | 400 |
| WOX 5-6 | 630 |
| WOX 6-6 | 900 |
| WOX 7-6 | 1 250 |
| WOX 8-6 | 1 600 |
| WOX 10-6 | 2 500 |
| WOX 13-6 | 4 250 |
| WOX 16-6 | 6 300 |
| WOX 20-5 | 8 000 |
| WOX 26-4+ | 12 000 |
