Z220/0,5T-10T / BRANO Z220/0,5T-10T Travelling pulley block View larger

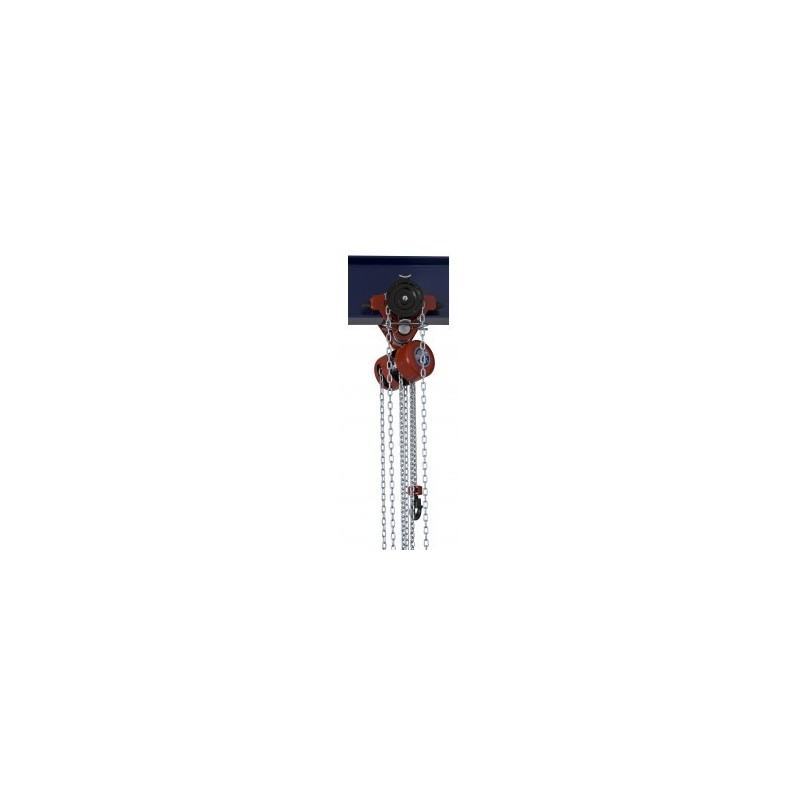

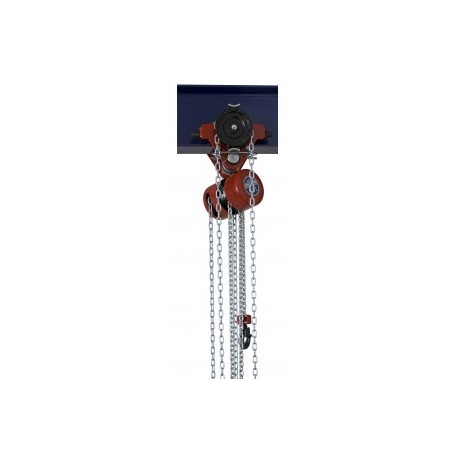

BRANO Z220/0,5T-10T Travelling pulley block

As a classic manually controlled crane for lifting and moving loads in the area of the crane track

More details

Price:

on demand

More info

Use:
As a classic manually controlled crane for lifting and moving loads in the area of the crane track

  • particularly useful for use wherever the lifting device is not used intensively
  • for occasional use
  • as a service hoist for installation and maintenance work in technological facilities of all types
  • in areas without a power source
  • can also be used in environments with a risk of explosion (NEXP symbol)

Properties:

  • simple construction, the trolley easily adapts to the width of the crane track
  • simple operation
  • minimum maintenance demands

The Z220/0,5 – 10t travelling hoist is intended for travelling along a horizontal crane track.
Can travel along profiles with a slanted flange (rolled ” I ” profiles) and also along profiles with a straight flange (profily typu “IPE, HEA, HEB, HEM “)
The Z220/0,5 – 10t travelling pulley block is manufactured as standard with a basic lift height of 3m. Lift heights from 3m to 12m are available.

Product combinations

Model Capacity WLL in kg Beam (I, IPE, HEA, HEB,HEM)
Z220-0,5A 500 58-113
Z220-0,5C 500 125-300 (IPE, HEA, HEB) 125-155 (I – slanted flange)
Z220-0,5B 500 58-226 (IPE, HEA, HEB) 58-155 (I – slanted flange)
Z220-1A 1 000 58-113
Z220-1C 1 000 125-300 (IPE, HEA, HEB) 125-155 (I – slanted flange)
Z220-1B 1 000 58-226 (IPE, HEA, HEB) 58-155 (I – slanted flange)
Z220-1,6A 1 600 58-113
Z220-1,6C 1 600 137-300
Z220-1,6B 1 600 58-226
Z220-3,2A 3 200 82-125
Z220-3,2C 3 200 160-300
Z220-3,2B 3 200 82-226
Z220-5A 5 000 90-137
Z220-5C 5 000 170-300
Z220-5B 5 000 90-226
Z220-7,5 7 500 125-185 (I)
Z220-7,5C 7 500 146-300
Z220-10C 10 000
Z220-10 10 000 125-185 (I)
