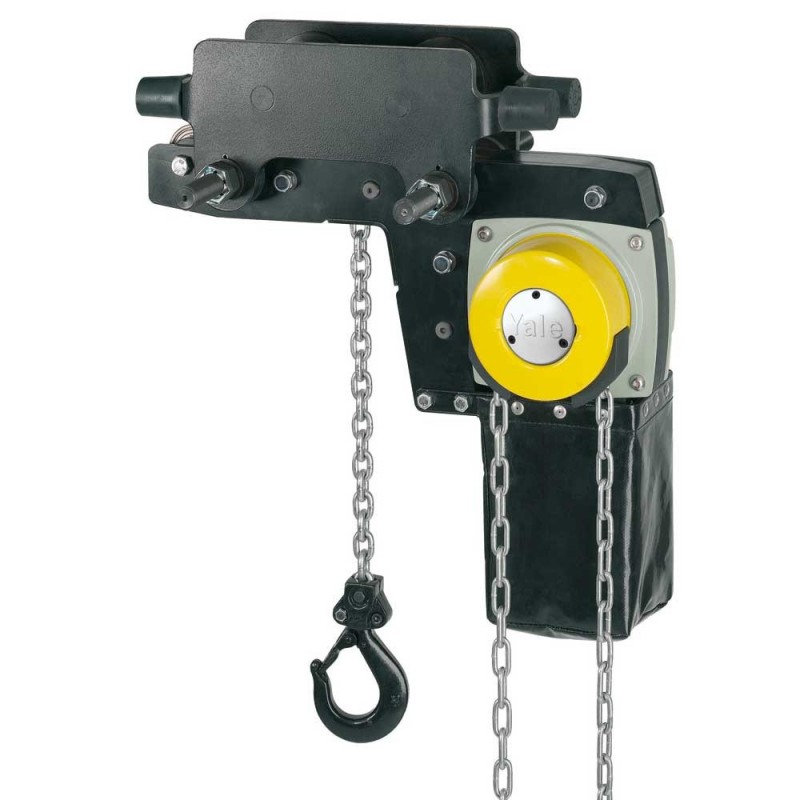

YALE Yalelift LH Hand chain hoist

Capacity 500 - 10 000 kg


The hand chain hoist model Yalelift LH with integrated low headroom manual trolley is the consequent further development of the Yalelift IT. Wherever an even smaller headroom is essential, the Yalelift LH is the ideal choice.

More details

Price:

on demand

More info

The hand chain hoist model Yalelift LH with integrated low headroom manual trolley is the consequent further development of the Yalelift IT. Wherever an even smaller headroom is essential, the Yalelift LH is the ideal choice.

  • The specially developed chain reeving system and chain guide allow the bottom block to be pulled laterally to the hoist even further up and almost against the beam flange.
  • The integrated design of the innovative Yalelift LH uses the same manual trolleys as incorporated in the Yalelift IT series.
  • All models of the LH series up to 3000 kg capacity are provided with single chain fall.
  • The proven and almost stepless adjustment system allows quick and easy assembly of the trolley.
  • The trolleys up to 5 t are offered for two beam ranges. Range A for a flange width up to 180 mm is standard and covers approx. 80 % of all requirements. Conversion to range B for beam width up to 300 mm can be easily accomplished.
  • The trolley wheels are designed for a max. beam profile incline of 14 % (DIN 1025 - part 1), excellent rolling features are guaranteed by prelubricated, encapsulated ball bearings.
  • The low headroom version of the Yalelift IT is adjustable to fit a wide range of beam profiles (e.g. INP, IPE, IPB).
  • Anti-drop and anti-tilt devices as standard.
  • Excellent rolling features due to machined steel wheels mounted on pre-lubricated, encapsulated ball bearings.

Options

  • Adjustable overload prevention device.
  • Stainless steel load and hand chains.
  • Chain container
  • Corrosion resistant version

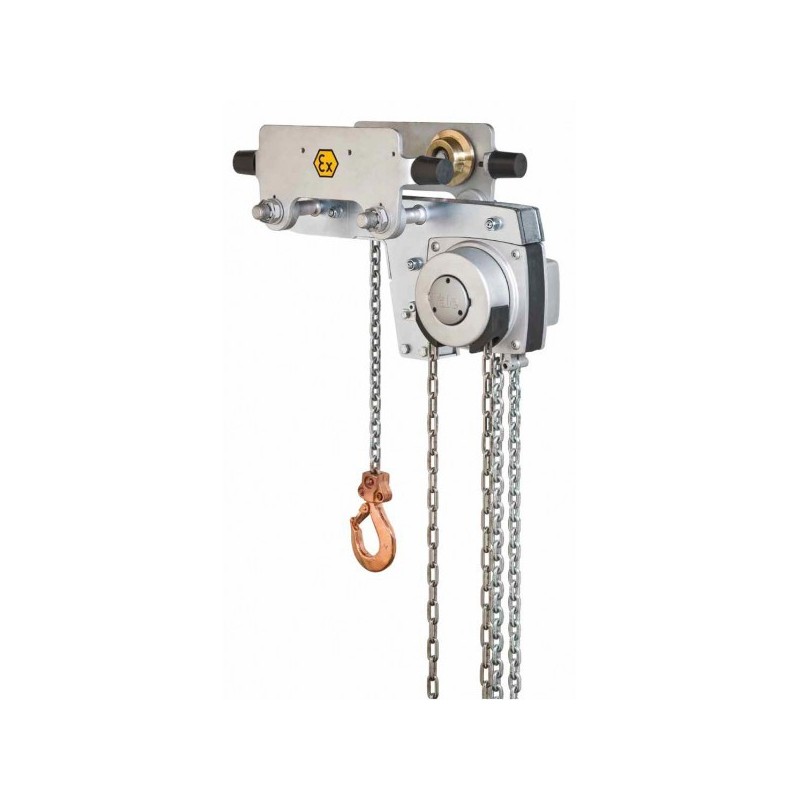

  • Explosion proof version
  • Beam locking device to secure the unloaded trolley in a fixed position on the beam (park position e.g. on ships). Available up to a capacity of 5 000 kg.

Lanové kladkostroje do výbušného prostředí    Available in explosion proof version.

Uložiť

Uložiť

Product combinations

Model Capacity WLL in kg Number of chain falls Beam flange width mm
YLLH500 500 1 60 - 180
YLLHB500 500 1 180 - 300
YLLH1000 1 000 1 70 - 180
YLLHB1000 1 000 1 180 - 300
YLLH2000 2 000 1 82 - 180
YLLHB2000 2 000 1 180 - 300
YLLHB3000 3 000 1 180 - 300
YLLH3000 3 000 1 100 - 180
YLLHB5000 5 000 2 180 - 300
YLLH5000 5 000 2 110 - 180
YLLH10000 10 000 3 125 - 180
YLLHB10000 10 000 3 180 - 310
