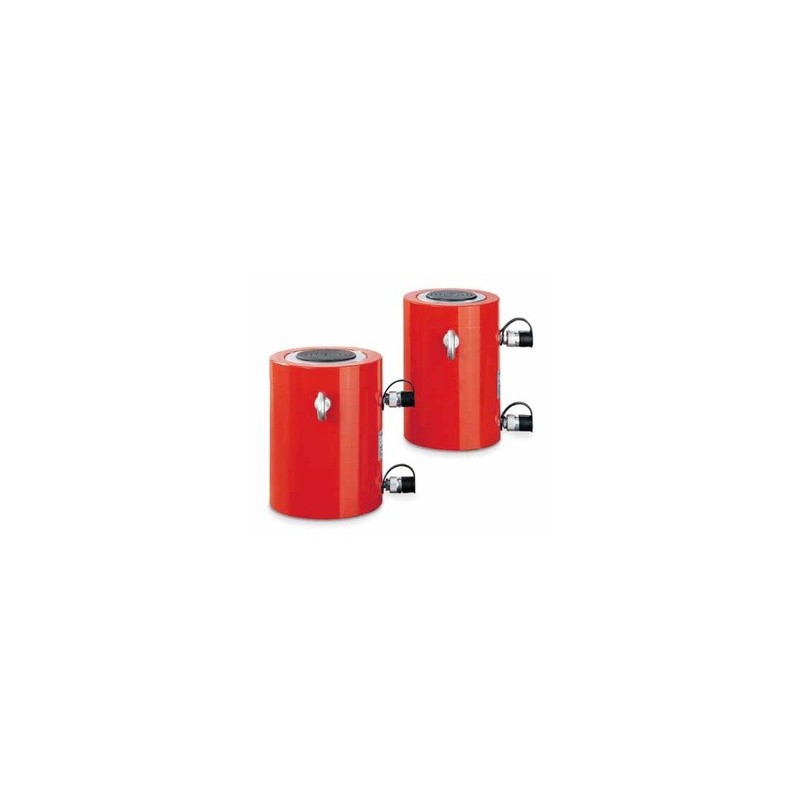

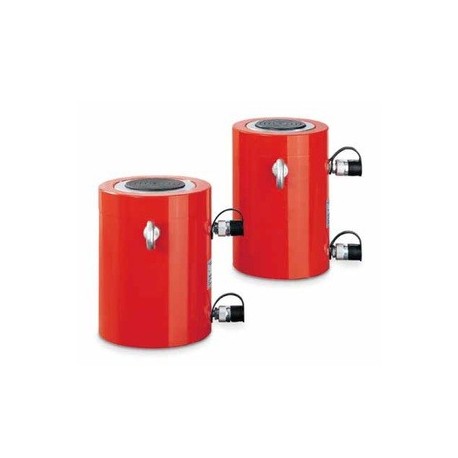

YEHA High-tonnage cylinders  YALE View larger

YEHA High-tonnage cylinders YALE

Double-acting with hydraulic return, capacity max. 140 - 1 100 t

Cylinders of series YEHA are normally used for lifting, positioning or handling heavy loads. The double-acting function allows a faster piston return, even with longer hydraulic hoses.

More details

Price:

on demand

More info

Cylinders of series YEHA are normally used for lifting, positioning or handling heavy loads. The double-acting function allows a faster piston return, even with longer hydraulic hoses. Lifting and moving of large machinery, steel  construction, bridges or similar loads, supporting of buildings and foundations. Further applications are positioning, weighing, through pressing, stress testing or jacking of all kinds of loads.

Features

  • Operating pressure max. 700 bar.
  • Double-acting with hydraulic return.
  • Generous guiding bands ensure a robust piston guiding.
  • Hard chromium-plated piston.
  • Stop ring as piston end stop.
  • Interchangeable hardened saddle.
  • Dirt wiper protects against dirt.
  • Oil port thread 3/8 NPT.
  • Incl. 2 female coupler halves model CFY-1.
  • Mounting threads on request.
  • All cylinders have lifting rings.

Product combinations

Model Lift, mm Lashing capacity, kN
YEHA-140/50 50 1 400
YEHA-560/50 50 5 620
YEHA-1100/50 50 11 000
YEHA-430/50 50 4 226
YEHA-340/50 50 3 430
YEHA-880/50 50 8 790
YEHA-220/50 50 2 200
YEHA-670/50 50 6 603
YEHA-1100/100 100 11 000
YEHA-430/100 100 4 226
YEHA-140/100 100 1 400
YEHA-880/100 100 8 790
YEHA-340/100 100 3 430
YEHA-220/100 100 2 200
YEHA-670/100 100 6 603
YEHA-560/100 100 5 620
YEHA-220/150 150 2 200
YEHA-670/150 150 6 603
YEHA-560/150 150 5 620
YEHA-1100/150 150 11 000
YEHA-430/150 150 4 226
YEHA-140/150 150 1 400
YEHA-880/150 150 8 790
YEHA-340/150 150 3 430
YEHA-140/200 200 1 400
YEHA-430/250 250 4 226
YEHA-140/300 300 1 400
YEHA-560/300 300 5 620
YEHA-1100/300 300 11 000
YEHA-880/300 300 8 790
YEHA-340/300 300 3 430
YEHA-220/300 300 2 200
YEHA-670/300 300 6 603
