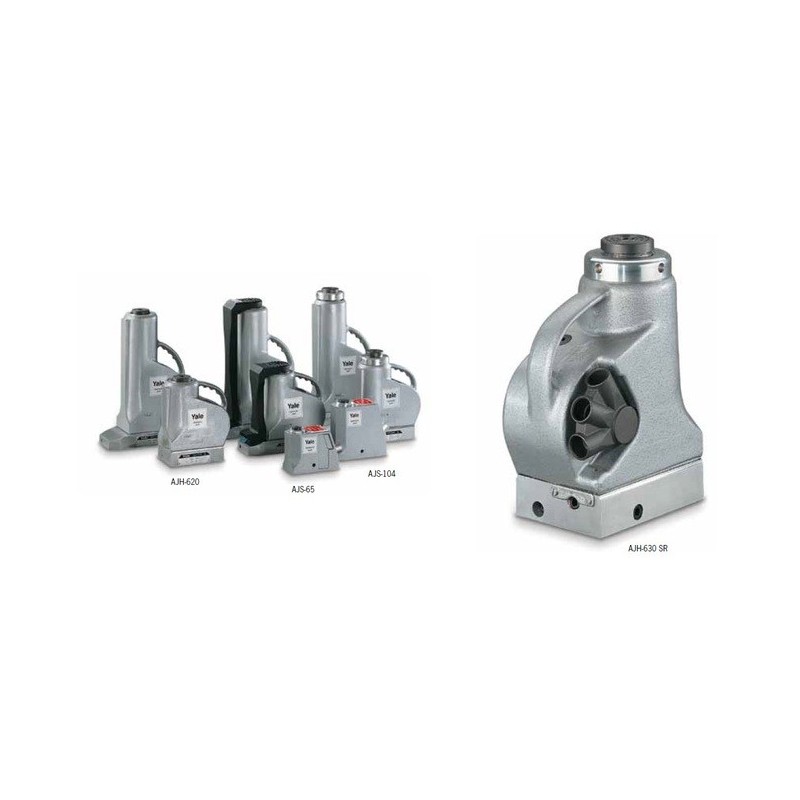

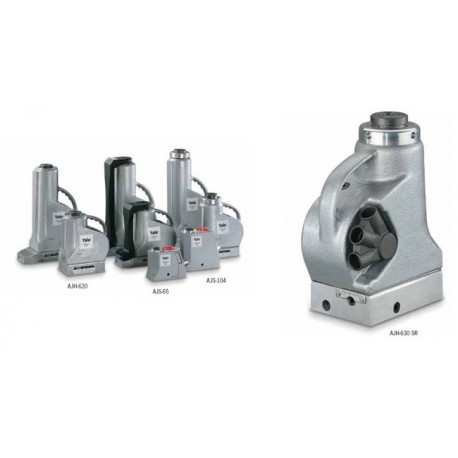

AJH / AJS Aluminium hydraulic jacks YALE View larger

YALE AJH / AJS Aluminium hydraulic jacks

Capacities from 6,5 - 100 t

Aluminium jacks combine light weight with high lifting capacity. The use of high tensile aluminium alloy allows lifting capacities of up to 100 tons resulting in a very favourable 1.8 tons lifting capacity per 1 kg weight ratio. Operation of Yale hydraulic jacks is very simple.

More details

Price:

on demand

More info

Aluminium jacks combine light weight with high lifting capacity. The use of high tensile aluminium alloy allows lifting capacities of up to 100 tons resulting in a very favourable 1.8 tons lifting capacity per 1 kg weight ratio. Operation of Yale hydraulic jacks is very simple. Jacks are supplied ready for use, i.e. including hydraulic oil, operating lever and, where applicable, carrying handle and lifting claw.

Aluminium jacks with lifting claw

Jacks from 20 tons are available with a lifting claw. In this case the jacks are provided with an elongated base plate. The max. permissible working load of the lifting claws is 40 % of the jack capacity.



 Aluminium jacks with safety lock nut

Jacks from 20 tons can be supplied with a safety lock nut. This device allows absolute safe jacking over a long period. In this case the hydraulic jack can be operated like a mechanical support and the hydraulic system can be totally released.



 Application

 Hydraulic jacks are universally popular tools for use in workshops or on site for all kinds of lifting and assembly applications, for construction, shipbuilding, power plants, general engineering, metal fabrication and many more. Applications are unlimited. Standard jacks with plain piston and jacks with safety lock nuts cannot be used with a lifting claw. To increase stability, all jacks with long stroke (305 mm) are equipped with an elongated base plate.





Features

  • Strokes from 75 - 305 mm.
  • Extremely low weight.
  • The 6.5 and 10 tons jacks can be operated in any position (also upside down) and are equipped with spring return piston and stop ring.
  • The 20 to 100 tons jacks can be operated vertically or with front face in horizontal position.
  • All jacks are provided with an overload protection valve.
  • From 20 tons capacity with additional mechanical stroke limiter.
  • All jacks with hardened alloy steel saddle and sensitive lowering valve which is activated by the operating lever.

Product combinations

Model Capacity WLL in kg Lift, mm Type
AJS-65 6 500 75 Standard jack
AJS-104 10 000 115 Standard jack
AJH-620 SR 20 000 152 Safety lock nut
AJH-1220 20 000 305 Standard jack
AJH-620 C 20 000 152 Lifting claw
AJH-1220 SR 20 000 305 Safety lock nut
AJH-1220 C 20 000 305 Lifting claw
AJH-1230 C 30 000 305 Lifting claw
AJH-630 SR 30 000 152 Safety lock nut
AJM-1230 30 000 305 Standard jack
AJH-1230 SR 30 000 305 Safety lock nut
AJM-630 30 000 152 Standard jack
AJH-660 SR 60 000 152 Safety lock nut
AJH-1260 60 000 305 Standard jack
AJH-660 C 60 000 152 Lifting claw
AJH-1260 C 60 000 305 Lifting claw
AJH-1260 SR 60 000 305 Safety lock nut
AJH-660 60 000 152 Standard jack
AJH-6100 SR 100 000 152 Safety lock nut
AJH-6100 100 000 152 Standard jack
