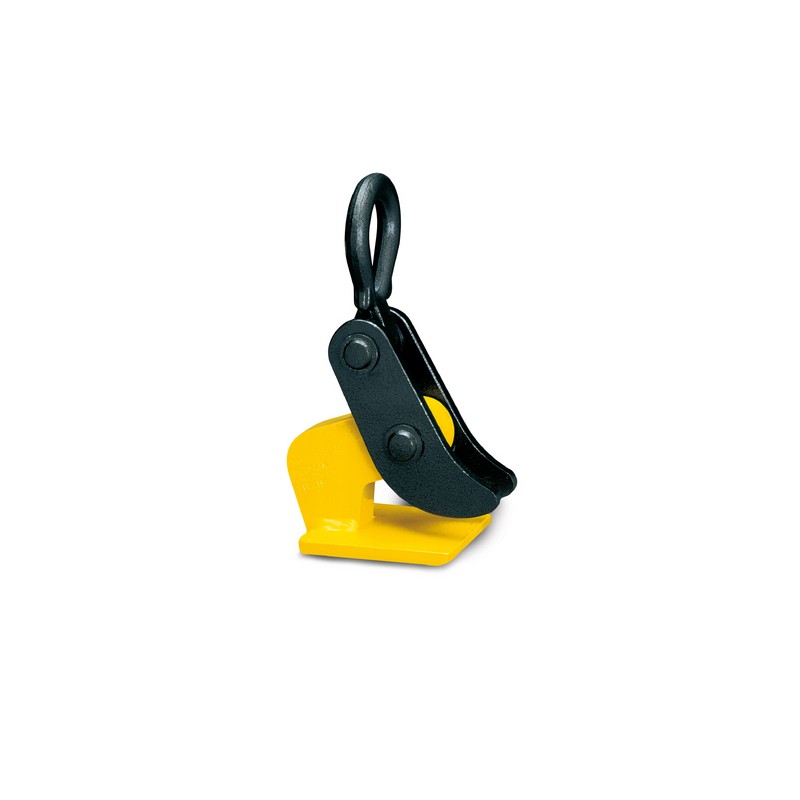

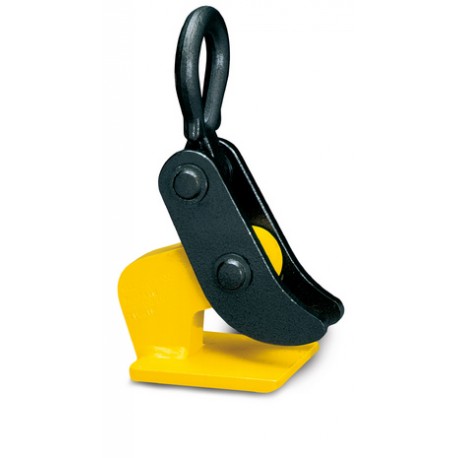

TCH / YALE TCH Horizontal lifting gear View larger

YALE TCH Horizontal lifting gear

Capacity 1000 - 10000 kg

The TCH horizontal lifting gear consists of two clamps with a two-legged chain sling.

More details

Price:

on demand

More info

  • The TCH horizontal lifting gear consists of two clamps with a two-legged chain sling. It is especially suited for the transport of single plates with a minimum thickness of approx. 5 mm as well as for plate bundles.
  • The two-legged version is appropriate for normal sized plates. For extra large or long plates, it is recommended to use two sets of the two-legged lifting gears in conjunction with a spreader beam.
  • In the standard version, the lifting clamp is suitable for plates up to 1500 mm width. Lifting gears with longer chains for larger plate widths are available on request. The capacity applies to a pair of lifting clamps. Single clamps are also available.
  • The angle from the vertical must not exceed 45°!

Product combinations

Model Capacity WLL in kg Jaw capacity, mm
TCH 1,0 1 000 0 - 50
TCH 2,0 2 000 5 - 32
TCH 4,0 4 000 5 - 50
TCH 6,0 6 000 5 - 75
TCH 8,0 8 000 5 - 75
TCH 10,0/1 10 000 5 - 100
TCH 10,0/2 10 000 50 - 150
