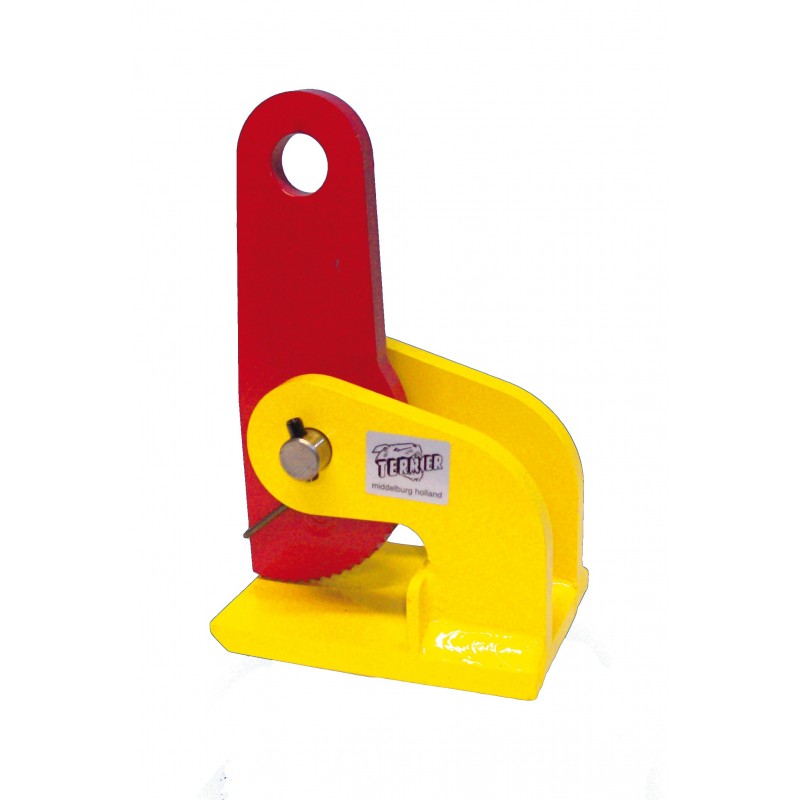

FHX-V horizontal clamps TERRIER
The FHX-V horizontal lifting clamps has a spring attached to the cam assembly allowing the clamp to close on any desired spot. The spring allows one operator to place the clamps and guide the hoist. FHX-V horizontal lifting clamps must always be used in pairs (or multiples thereof).
Price:
on demand
More info
The FHX-V horizontal lifting clamps has a spring attached to the cam assembly allowing the clamp to close on any desired spot.
- The spring allows one operator to place the clamps and guide the hoist.
- FHX-V horizontal lifting clamps must always be used in pairs (or multiples thereof).
- Lifting clamps HXW-V are available with a capacity from 1.000 kg per pair to 6.000 kg per pair.
Product combinations
| Model | Capacity WLL in kg | Jaw-opening, mm |
|---|---|---|
| 1FHX-V | 1 000 | 0-35 |
| 2FHX-V | 2 000 | 0-60 |
| 3FHX | 3 000 | 0-60 |
| 4FHX-V | 4 000 | 0-60 |
| 6FHX-V | 6 000 | 0-60 |
