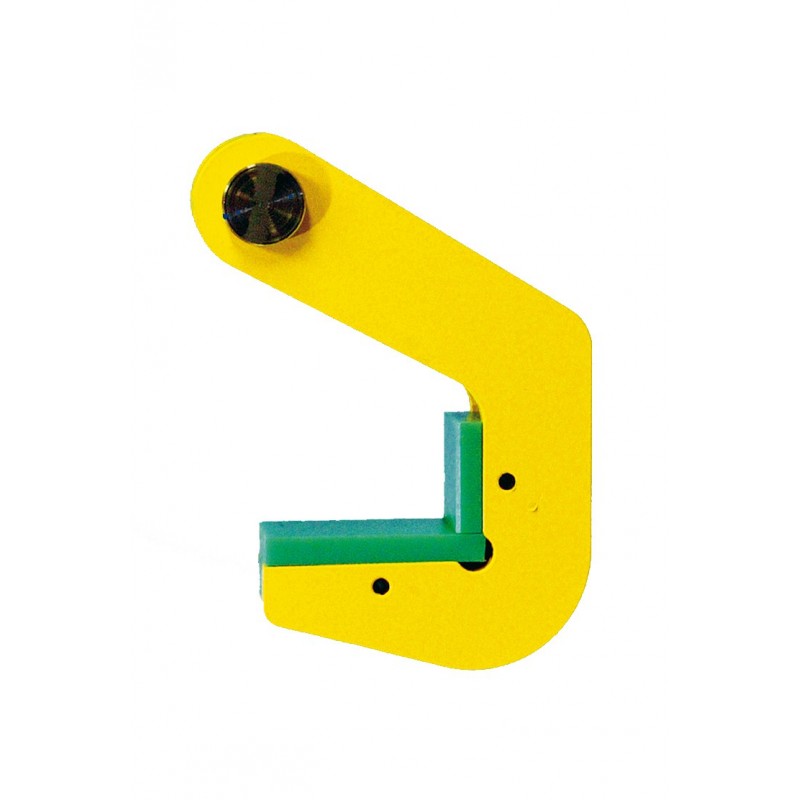

TPH / TPH-HD Screw clamps TERRIER
For horizontal lifting and moving of steel and concrete pipes. Compact shape and relatively low unit weight with a high lifting capacity. The surface is equipped with “special” plastic cover. Plastic cover replacement parts are available and easy to change.
Price:
on demand
More info

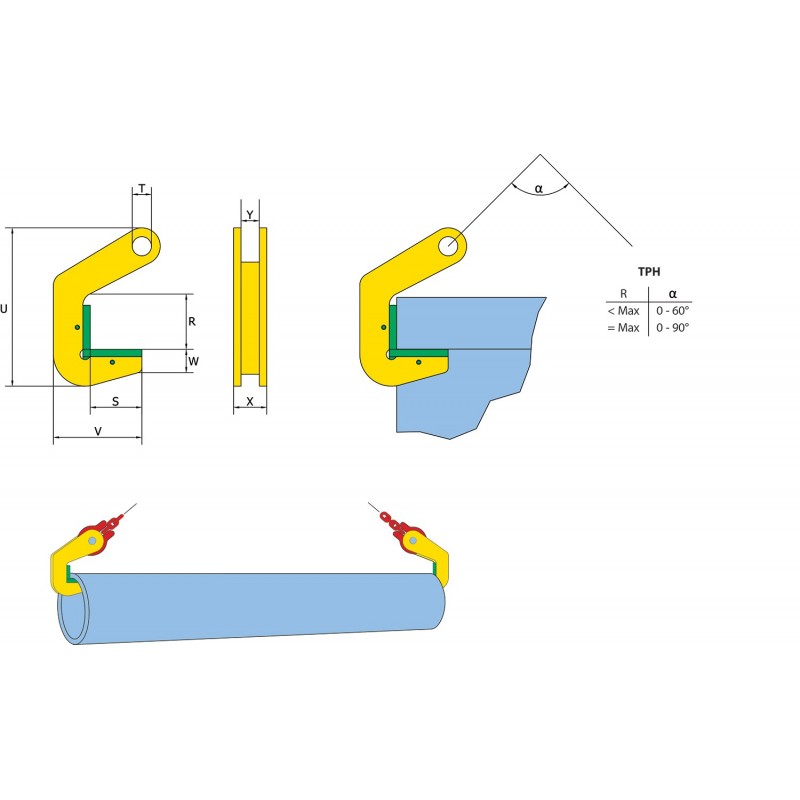

For horizontal lifting and moving of steel and concrete pipes.
- Compact shape and relatively low unit weight with a high lifting capacity.
- The surface is equipped with “special” plastic cover.
- Plastic cover replacement parts are available and easy to change.
Product combinations
| Model | Capacity WLL in kg | Jaw-opening, mm |
|---|---|---|
| 1.5TPH | 1 500 | 40 |
| 3TPH | 3 000 | 40 |
| 4TPH | 4 000 | 50 |
| 5TPH-HD | 5 000 | 60 |
| 6TPH | 6 000 | 50 |
| 8TPH | 8 000 | 70 |
| 10TPH-HD | 10 000 | 60 |
| 10TPH | 10 000 | 70 |
| 12TPH | 12 000 | 70 |
| 15TPH | 15 000 | 70 |
| 20TPH | 20 000 | 70 |
| 20TPH-HD | 20 000 | 60 |
| 30TPH-HD | 30 000 | 60 |
| 60TPH-HD | 60 000 | 60 |
