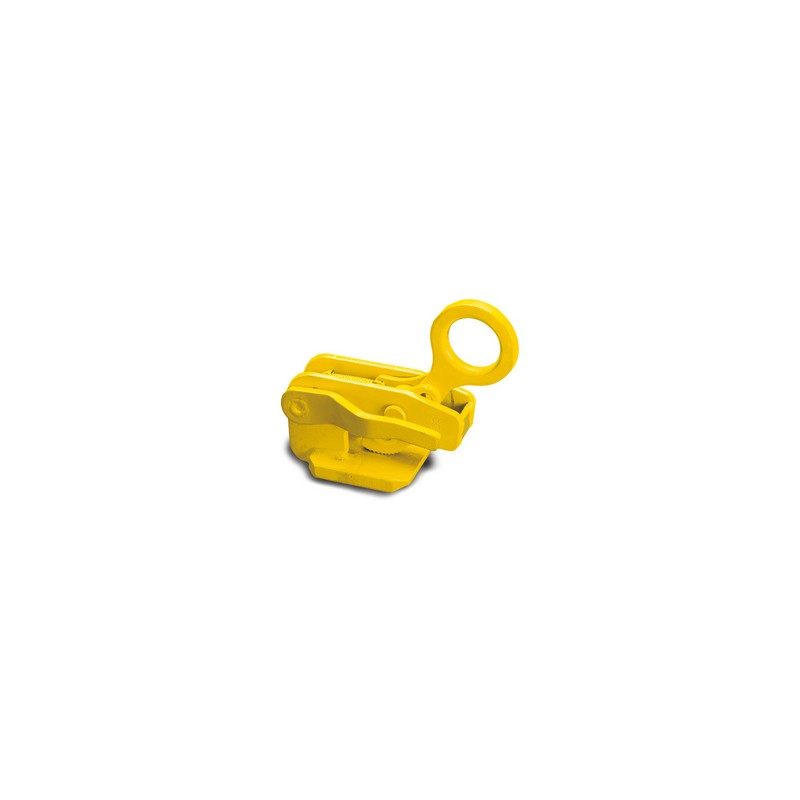

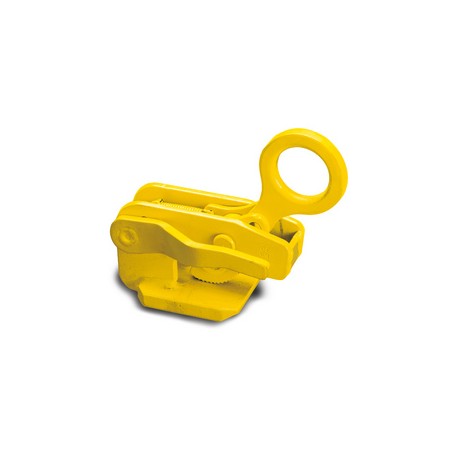

YALE THS Lifting clamp
Capacity 750 - 4500 kg
The THS lifting clamp is normally used in pairs especially for the horizontal transport of plates.
Price:
on demand
More info
- The THS lifting clamp is normally used in pairs especially for the horizontal transport of plates.
- The transport of slightly sagging plates is also possible. Individually, it can be used to load presses shears, and other machines.
- The safety lock is preventing the clamp from opening, even when there is no load.
- The jaws can be opened and closed with the safety lock lever.
- This clamp has a lock-open feature.
Options
- The models THS 1.5 and THS 3.0 are available with a hinged hook ring on request.
Details
- When used in pairs the angle from the vertical must not exceed 30°.
Product combinations
| Model | Capacity WLL in kg | Jaw capacity, mm |
|---|---|---|
| THS 0,75 | 750 | 0 - 20 |
| THS 1,5 | 1 500 | 0 - 35 |
| THS 3,0 | 3 000 | 0 - 40 |
| THS 4,5 | 4 500 | 0 - 40 |
