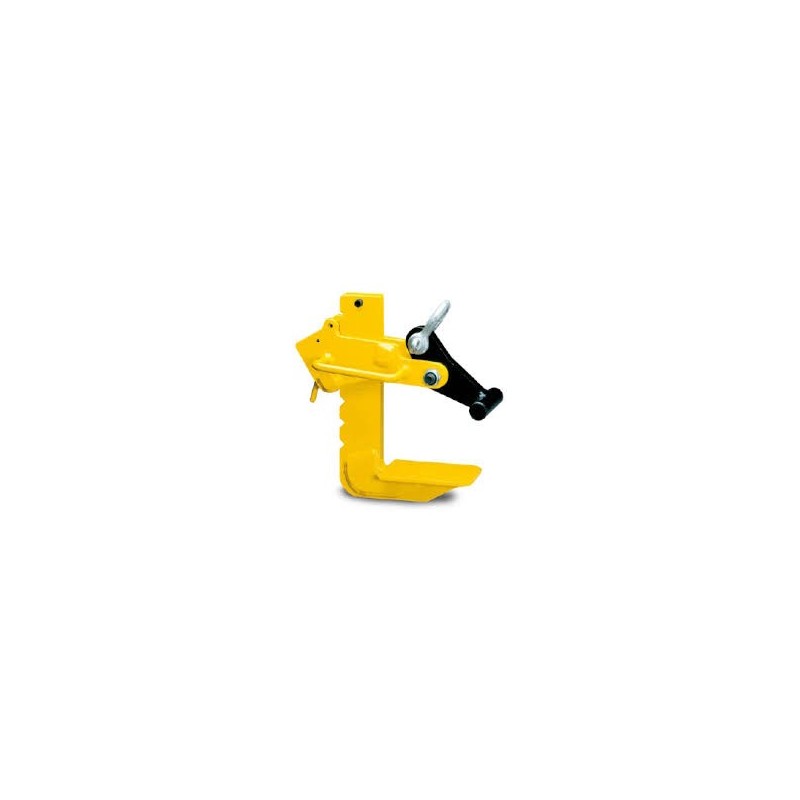

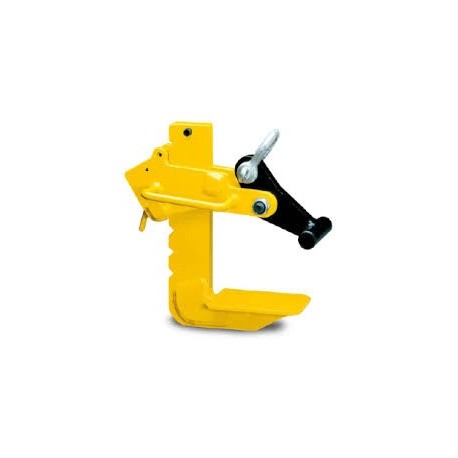

YALE TGF Horizontal lifting gear
Capacity 350 - 6 650 kg
The TGF horizontal lifting gear consists of two clamps with a two-legged chain sling and is especially suited for the transport of plate bundles.
on demand
More info
The TGF horizontal lifting gear consists of two clamps with a two-legged chain sling and is especially suited for the transport of plate bundles. For the transport of stainless steel plate bundles, plywood bundles, etc. the clamps are optionally available with flat jaws and protective lining. The clamps are easily adjusted to the height of the plate by a special ratcheting lever. The lifting clamps are available in special versions for bundle thicknesses up to 400 mm.
Scope of delivery for horizontal lifting gear 2 clamps and two-legged chain sling for plate width 1500 mm.
Product combinations
| Model | Capacity WLL in kg | Jaw capacity, mm |
|---|---|---|
| TGF 0,3/150 | 350 | 0 - 150 |
| TGF 0,3/250 | 350 | 0 - 250 |
| TGF 0,6/250 | 650 | 0 - 250 |
| TGF 0,6/150 | 650 | 0 - 150 |
| TGF 1,3/250 | 1 300 | 0 - 250 |
| TGF 1,3/150 | 1 300 | 0 - 150 |
| TGF 2,3/150 | 2 300 | 0 - 150 |
| TGF 2,3/250 | 2 300 | 0 - 250 |
| TGF 3,3/250 | 3 300 | 0 - 250 |
| TGF 3,3/150 | 3 300 | 0 - 150 |
| TGF 5,0/250 | 5 000 | 0 - 250 |
| TGF 5,0/150 | 5 000 | 0 - 150 |
| TGF 6,6/250 | 6 650 | 0 - 250 |
| TGF 6,6/150 | 6 650 | 0 - 150 |
