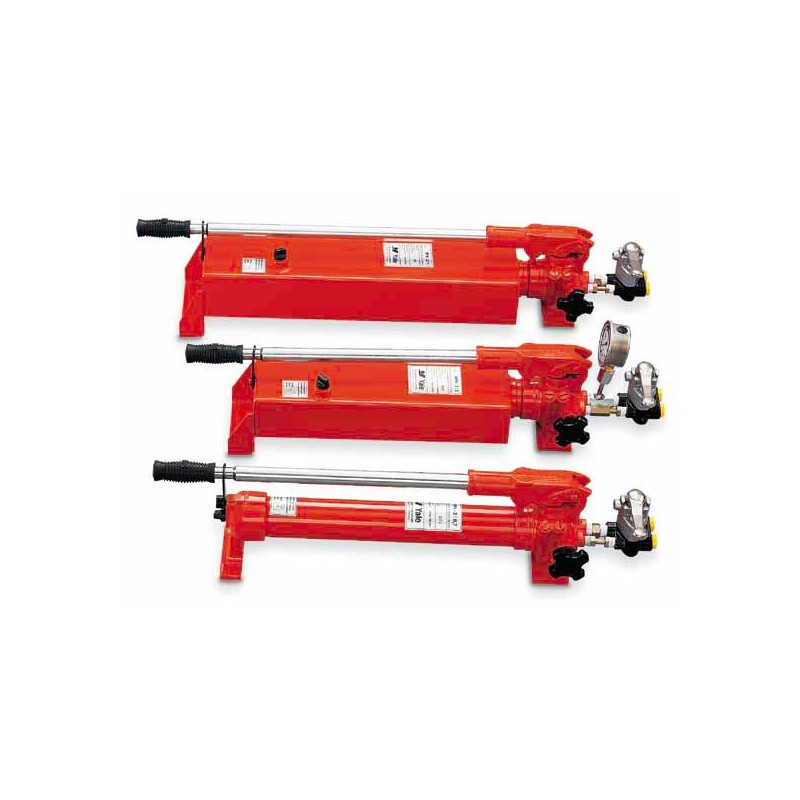

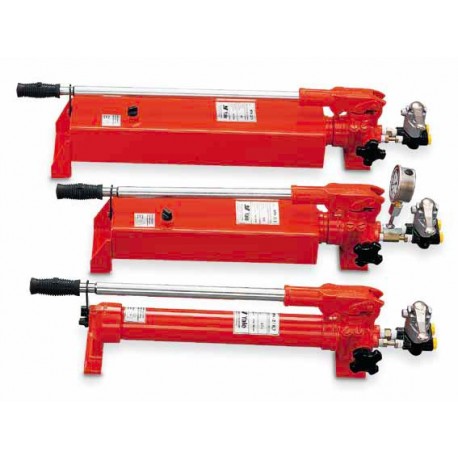

YALE HPH Hand pumps for double-acting hydraulic cylinders

With 4-way valve and relief valve (hand wheel)

All hand pumps of type HPH are designed as doubleacting cylinders. Basically, they do not differ from series HPS, but are equipped with a 4/3-way directional valve. The precision-adjustable relief valve remains unaffected and permits a sensitive pressure relief. Pressure gauge and adaptor can be delivered as accessories.

More details

Price:

on demand

More info

All hand pumps of type HPH are designed as doubleacting cylinders. Basically, they do not differ from series HPS, but are equipped with a 4/3-way directional valve. The precision-adjustable relief valve remains unaffected and permits a sensitive pressure relief. Pressure gauge and adaptor can be delivered as accessories.

Product combinations

Model Reservoir volume, cm³ Displacement
HPH-2/0,7A 700 two-stage
HPH-2/2A 2 000 two-stage
HPH-2/4A 4 000 two-stage
HPH-2/6,5A 6 500 two-stage
HPH-2/10A 10 000 two-stage
