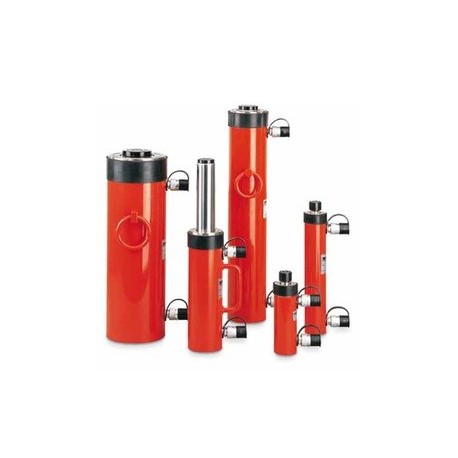

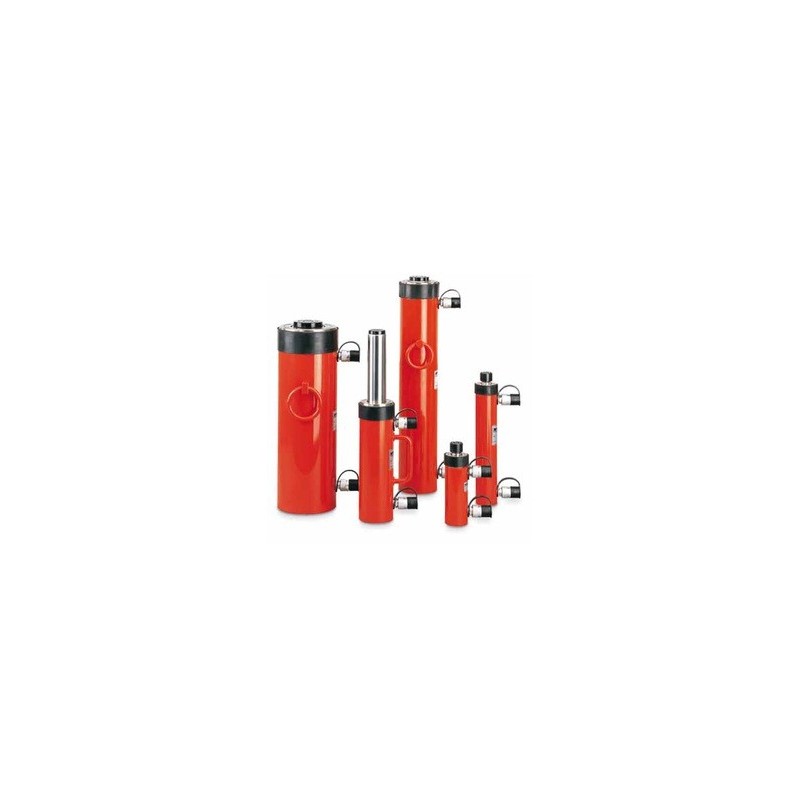

YALE YA Universal cylinders

Double-acting with hydraulic return, capacity 5 - 200 t

These extremely robust double-acting cylinders are especially designed for universal heavy-duty lifting and  positioning applications as well as for industrial production and assembly jobs. The cylinders offer high pushing and pulling forces. The double-acting design assures a high piston retraction speed.

More details

Price:

on demand

More info

These extremely robust double-acting cylinders are especially designed for universal heavy-duty lifting and  positioning applications as well as for industrial production and assembly jobs. The cylinders offer high pushing and pulling forces. The double-acting design assures a high piston retraction speed. Major areas of application are bridge building and civil engineering, off-shore, ship building, etc. They can also be used as power source in frame presses, stamping fixtures and other industrial uses where high pushing and pulling forces are required.

Features

  • Yale ChroMo-Design.
  • Operating pressure max. 700 bar.
  • Double-acting with hydraulic return.
  • Long bronze piston guidings.
  • Piston strokes from 30 up to 500 mm.
  • Cylinder body and piston are made from solid chromium-molybdenum steel and heat-treated.
  • Double bronze bearing of the hard chromium plated piston.
  • Metric mounting threads on cylinder housing, in the bottom of the cylinder body and in the piston rod.
  • Stop ring can bear full capacity (pressure) and is fitted with dirt wiper.
  • Interchangeable hardened saddle.
  • Dirt wiper protects against dirt.
  • Oil port thread 3/8 NPT.
  • Incl. 2 female coupler halves model CFY-1.
  • From model YH-30/200 with carrying handle.
  • From model YH-50/350 with 2 lifting rings.

Product combinations

Model Capacity WLL in kg Lift, mm
YH-5/150 5 000 150
YH-5/30 5 000 30
YH-5/80 5 000 80
YH-10/30 10 000 30
YH-10/250 10 000 250
YH-10/150 10 000 150
YH-10/80 10 000 80
YH-20/250 20 000 250
YH-20/150 20 000 150
YH-20/50 20 000 50
YH-30/200 30 000 200
YH-30/350 30 000 350
YH-50/350 50 000 350
YH-50/150 50 000 150
YH-50/500 50 000 500
YH-70/150 70 000 150
YH-70/350 70 000 350
YH-100/350 100 000 350
YH-100/150 100 000 150
YH-100/50 100 000 50
YH-100/500 100 000 500
YH-200/350 200 000 350
YH-200/150 200 000 150
YH-200/500 200 000 500
