VLBG Load ring, metric thread - RUD View larger

VLBG Load ring, metric thread - RUD

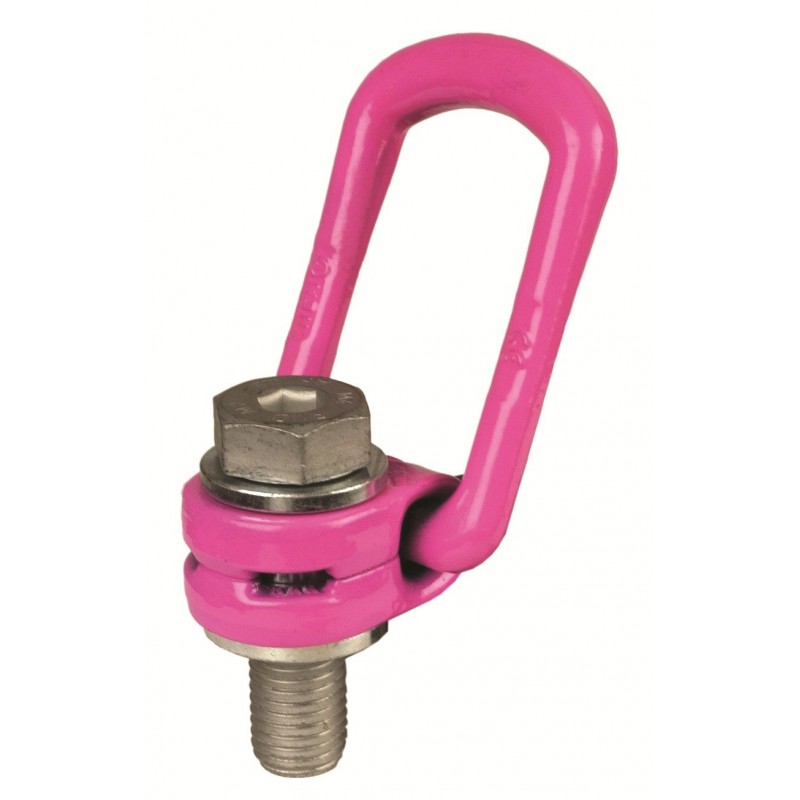

With a fully captive but easy to demount 100% crack detected hexagon head cap bolt. Load ring is stowable and pivots in all directions. The load ring must be flexible and adjusted to the load direction before being loaded. Ensure that there is no contact between the ring and the edges of the work piece. Avoid swiveling under full load.

More details

Price:

on demand

More info

With a fully captive but easy to demount 100% crack detected hexagon head cap bolt.

  • Load ring is stowable and pivots in all directions.
  • The load ring must be flexible and adjusted to the load direction before being loaded. Ensure that there is no contact between the ring and the edges of the work piece. Avoid swiveling under full load.
  • A single threaded hole or a through hole is necessary. A very small construction.
  • Work piece material, at least 1.0037 (St 37). For light metals, nonferrous heavy metals and grey cast iron, the thread type allocation must be done in such a way that, the WLL of the thread type fulfils the requirements of the respective work piece. Make sure the bolting surface (N) is plane.

Product combinations

Model Capacity WLL in kg Thread The standard length of thread, mm
VLBG 0,3 M8 300 M8 11
VLBG 0,63 M10 630 M10 16
VLBG 1 M12 1 000 M12 21
VLBG 1,5 M16 1 500 M16 24
VLBG 2,5 M20 2 500 M20 32
VLBG 4 M24 4 000 M24 37
VLBG 4 M27 4 000 M27 39
VLBG 5 M30 5 000 M30 49
VLBG 7 M36 7 000 M36 52
VLBG 8 M36 8 000 M36 63
VLBG 10 M42 10 000 M42 73
VLBG 15 M42 15 000 M42 63
VLBG 20 M48 20 000 M48 73
