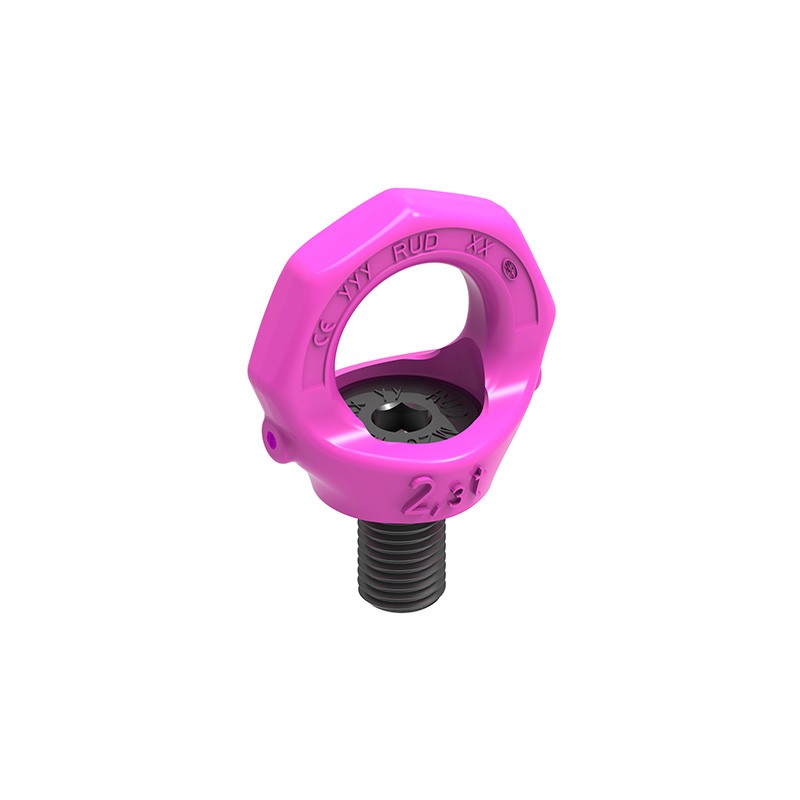

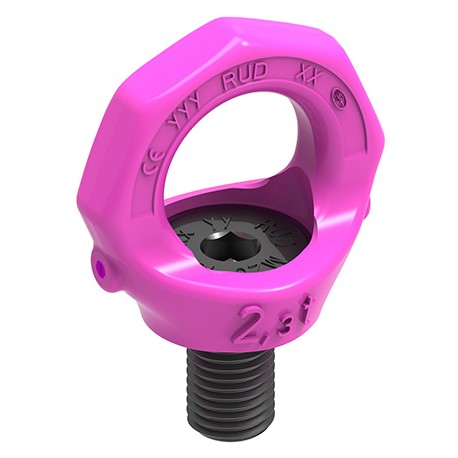

VRS STARPOINT  - metrisch RUD View larger

VRS STARPOINT - metrisch RUD

Star shaped design, a clear distinction from the DIN 580 eye bolt.

  • Color: striking fluorescent pink powder coating.
  • Identification: Clear WLL indication for the most unfavorable load direction F (not permissible for DIN 580).

More details

Price:

on demand

More info

Star shaped design, a clear distinction from the DIN 580 eye bolt.

  • Color: striking fluorescent pink powder coating.
  • Identification: Clear WLL indication for the most unfavorable load direction F (not permissible for DIN 580).
  • Forged material 1.6541, high tensile and annealed, 100% electromagnetic crack detected according to EN 1677-1 and with a 4 :1 design factor.
  • If the VRS permanently to remain at the point of force introduction, it must be tightened with a torque of 5 Nm.

Product combinations

Model Capacity WLL in kg Thread The standard length of thread, mm
VRS M6 100 M6 9
VRS M8 300 M8 12
VRS M10 400 M10 15
VRS M14 750 M14 18
VRS M12 750 M12 18
VRS M20 1 500 M18 24
VRS M16 1 500 M16 24
VRS M20 2 300 M20 30
VRS M22 2 300 M22 30
VRS M27 3 200 M27 36
VRS M24 3 200 M24 36
VRS M33 4 500 M33 45
VRS M30 4 500 M30 45
VRS M36 7 000 M36 54
VRS M42 9 000 M42 63
VRS M48 12 000 M48 72
