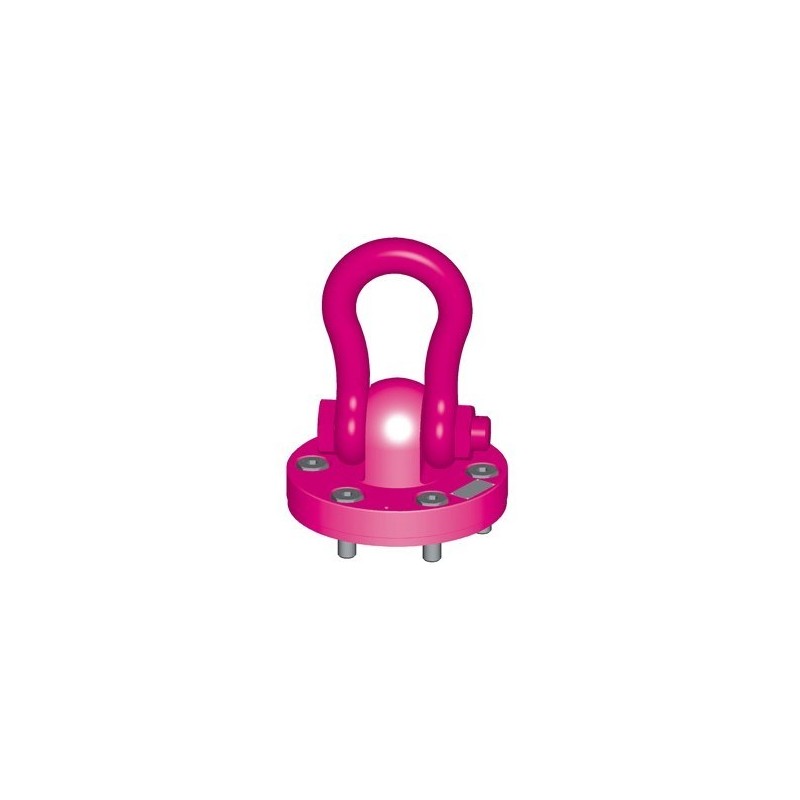

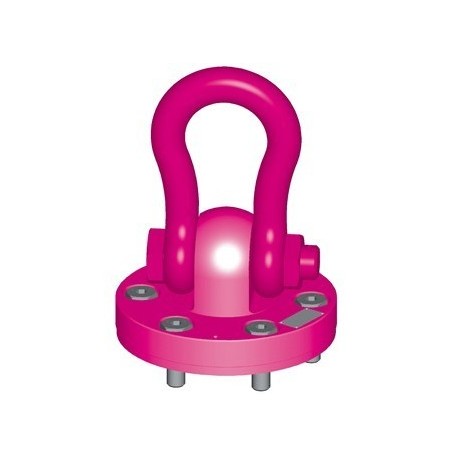

WBPG Hoist ring on plate for bolting - RUD

With 6 pcs RUD-bolts M48. Removable suspension ring in the shape of a shackle for the attachment of cable-laid grommets (with heavy load cable eyes). Loadable from any side in the direction of pivot, thereby suitable for lifting and turning of loads.  Swivel bolt with ball bearing (for a shock-free turning by 360°).  Threaded holes for Starpoint-VRS, for the simple installation (vertical).

More details

Price:

on demand

More info

  • With 6 pcs RUD-bolts M48
  • Removable suspension ring in the shape of a shackle for the attachment of cable-laid grommets (with heavy load cable eyes).
  • Loadable from any side in the direction of pivot, thereby suitable for lifting and turning of loads.
  • Swivel bolt with ball bearing (for a shock-free turning by 360°).
  • Threaded holes for Starpoint-VRS, for the simple installation (vertical).
  • On request with sling shackle for the direct attachment and a gentle use of cable-laid grommets

Product combinations

Model Capacity WLL in kg Thread Thread length, mm
WBPG 85 85 000 M48 71
WBPG 100 100 000 M48 71
WBPG 120 120 000 M48 75
WBPG 200 200 000 M48 71
