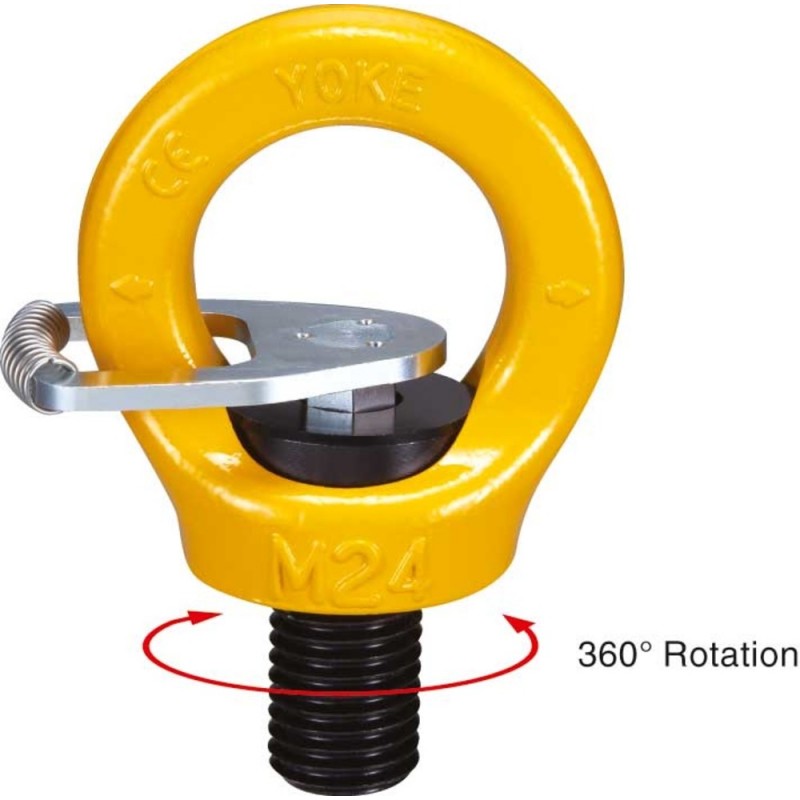

YOKE SPK Eyebolt

The grade 100 YOKE SunPoint SPK eyebolts have particularly high Working Load Limits which can reach up to 12 tons.

Price:

on demand

In accordance with EN 1677
High-tensile, grade 100 (WLL up to 12 to.)
360° rotating for more flexibility and security
Adjusting to pulling direction even when tightly screwed in
All building components are subjected to a 100% electromagnetical crack detection
Quick assembly and maintenance thanks to the integrated fixing key (screw in and out without further tools)
Interchangeable screw (easy disassembly and replacement with the help of the “Repair Kit”)
Immediate stock availability from all sizes (M8 – M48)
UNG-thread available on request

Model	Diameter D&E	Working load limit in t	The standard length of thread, mm
SPK-M8	M8	0.3	12
SPK-M10	M10	0.4	15
SPK-M12	M12	0.75	18
SPK-M16	M16	1.5	24
SPK-M20	M20	2.3	30
SPK-M24	M24	3.2	36
SPK-M30	M30	4.5	45
SPK-M36	M36	7.0	54
SPK-M42	M42	9.0	63
SPK-M48	M48	12.0	72
