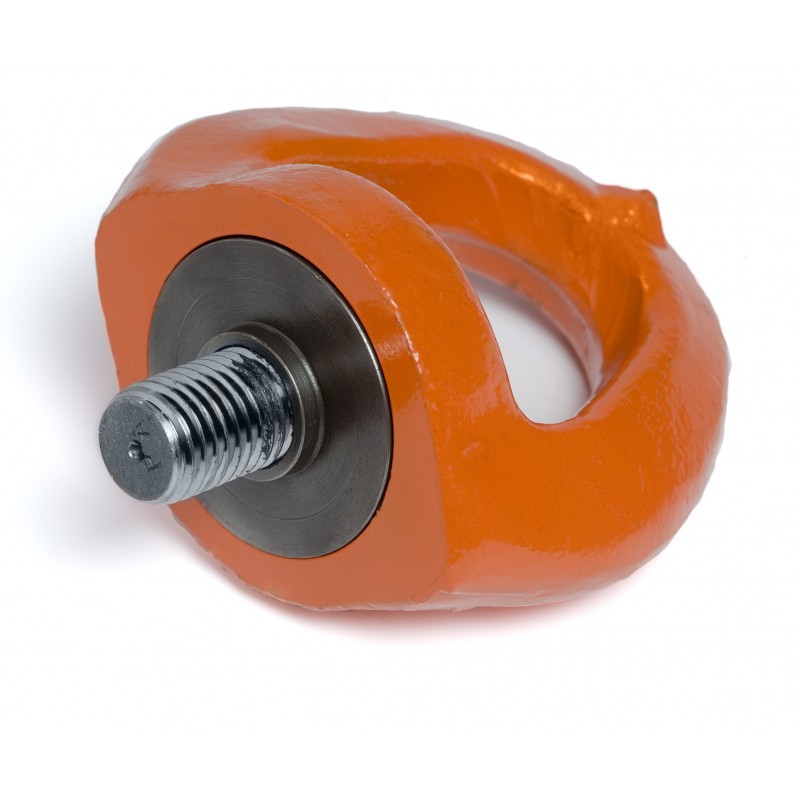

SEB+C Swivel Eye Bolt + Centring CODIPRO

Capacity 300 - 15 000 kg

The swivel eye bolt with centring SEB+C is fitted with an automatic position recovery system for optimum orientation in the direction of the sling. Thanks to its centring system (+C), the bolt is reinforced, when the eye bolt is fixed laterally on the charge to load.

More details

More info

The swivel eye bolt with centring SEB+C is fitted with an automatic position recovery system for optimum orientation in the direction of the sling. Thanks to its centring system (+C), the bolt is reinforced, when the eye bolt is fixed laterally on the charge to load.

  • Tightening by Allen key
  • Permits the hook to move parallel to the supporting face of the ring being drawn at 90°
  • From M16 to M42 as standard; for loads from 1.6 t to 12.5 t
  • Other variants of fitting bolts on request
  • Equipped with the patented centring system

Product combinations

Model Capacity WLL in kg Thread Safety factor The standard length of thread, mm
SEB + C M 8 300 M 8 (x1,25) 5 14
SEB + C M 10 600 M 10 (x1,5) 5 17
SEB + C M 12 1 000 M 12 (x1,75) 5 21
SEB + C M 16 1 600 M 16 (x2) 5 27
SEB + C M 20 2 500 M 20 (x2,5) 5 30
SEB + C M 24 4 000 M 24 (x3) 5 36
SEB + C M 30 6 300 M 30 (x3,5) 5 45
SEB + C M 36 10 000 M 36 (x4) 5 54
SEB + C M 42 12 500 M 42 (x4,5) 5 63
SEB + C M 48 15 000 M 48 (x5) 4 68
