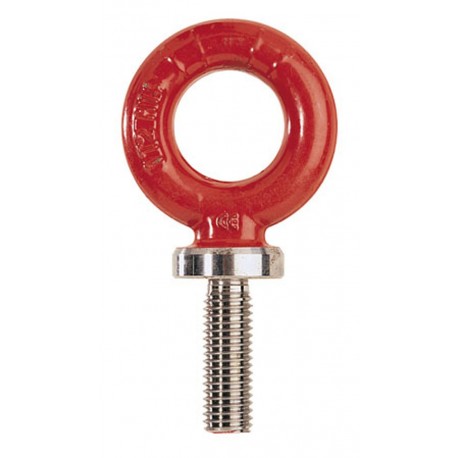

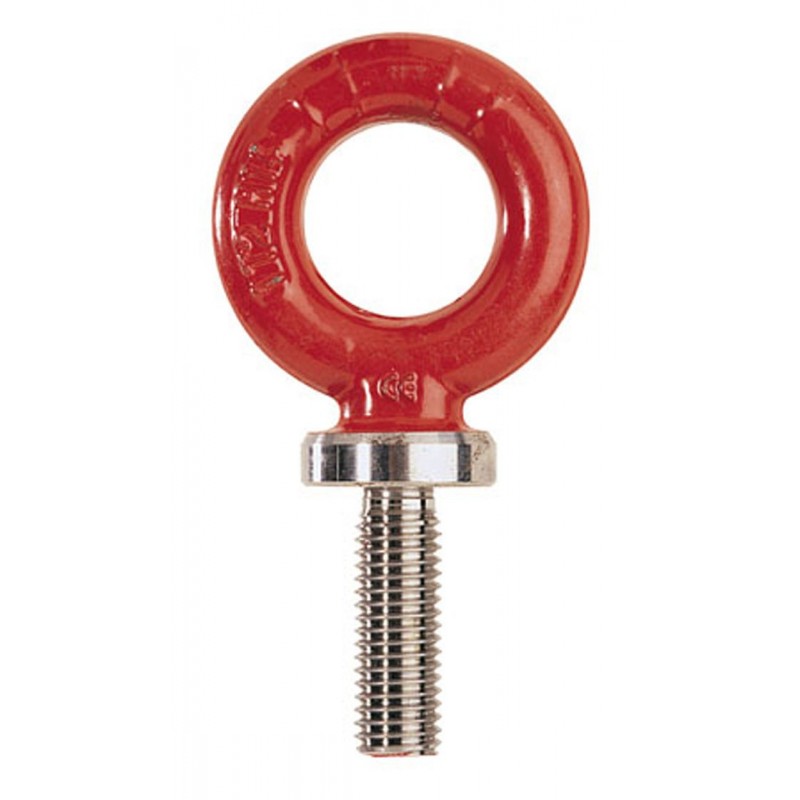

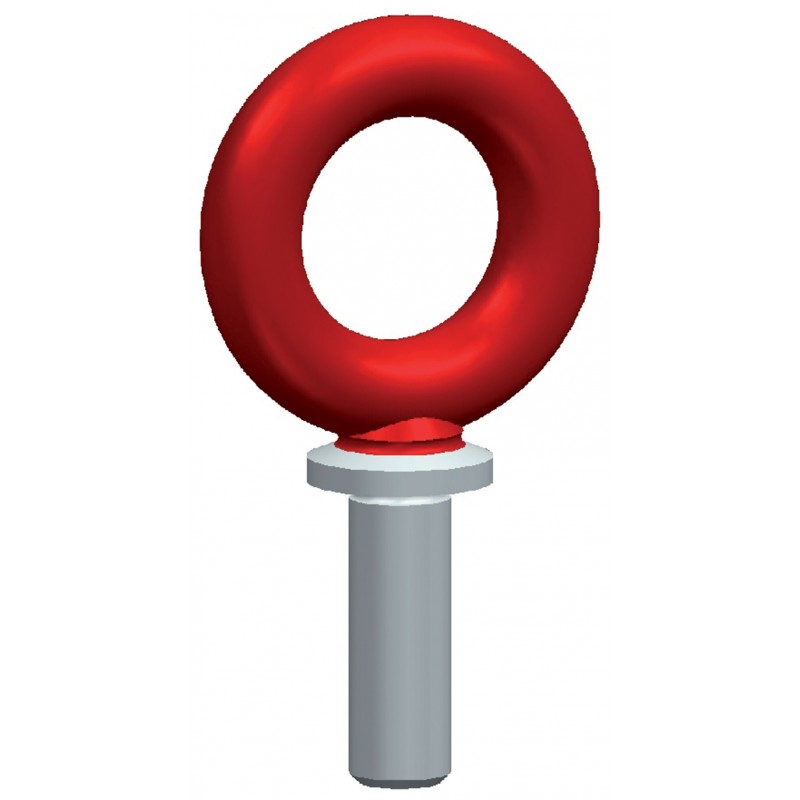

PEWAG RGS Alloy steel eyebolts

Capacity 400 - 4 000 kg

The high-tensile eyebolt RGS is usable for lifting of machine
parts. Eyebolts may only be tightened manually. Not suitable for
diagonal pull.

Permissible usage
Load capacity acc. to the inspection certificate respectively table of
WLL in the mentioned directions of pull – see picture 1.


More details

More info

The high-tensile eyebolt RGS is usable for lifting of machine
parts. Eyebolts may only be tightened manually. Not suitable for
diagonal pull.

Permissible usage
Load capacity acc. to the inspection certificate respectively table of
WLL in the mentioned directions of pull – see picture 1.

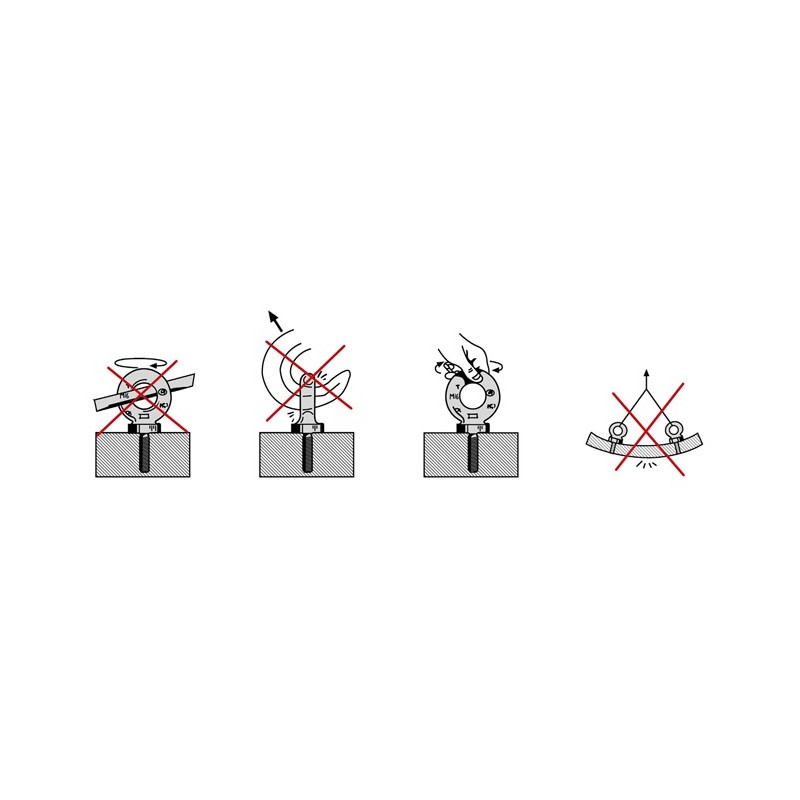

Non permissible usage
Make sure when choosing the assembly that improper load can not
arise e.g. if:
• The direction of pull is obstructed
• Direction of pull is not in the foreseen area (see picture 2 and 3)

Product combinations

Model Capacity WLL in kg Thread The standard length of thread, mm
RGS 8 400 M8 25
RGS 10 700 M10 30
RGS 12 1 000 M12 36
RGS 14 1 200 M14 40
RGS 16 1 500 M16 53
RGS 20 2 500 M20 58
RGS 24 4 000 M24 82
